GHS1500 15 Bay Redundant Server Case

If you would like to place an order or require more information,
you can contact us by sending Email to [email protected]
or phone us on (03) 9555 2958, or fax to (03) 9532 2643.
Award One Technology is located in Melbourne, Australia.

  GHS-1500

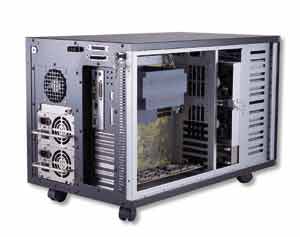

Server Case
GHA-1520

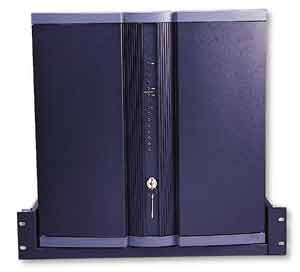

  •  GHS-1500,GHS-2000 Rackmount Application (Optional)

  • Server / RAID Case or 19" Rack mounted (10U height)

  • Lockable security access and lockable casters

  • Construction: Heavy-Duty Steel

  • Color : Black Or Customer Design

  • Support Full size AT, ATX M/B & 14-slot Passive Backplane

  • Drive Bays: 15*5.25" (Open)

  • Power Supply: PS/2 size single 250-400W

  • Redundant 300-400W P/S

  • Triple redundant 800W +400W (Optional)

  • Cooling: 5x 9cm ball bearing fan, hot swap, 51CFM/ Each

  • Dimensions : 410(W)x 416(H)x710(D)mm (16.2"x 16.4"x28"¨)
