Promise VTrak A3800fsl Series 4U 24 Bay Single 8G Quad Port Fibre Channel SAN, RAID 0, 1, 5, 6, 10, 50, 60 , A-Class Shared Storage Appliance
- All-in-one metadata appliance, RAID storage subsystem, and file system for Big Data. - Optimized for high performance, high bandwidth rich media applications requiring large block sequential IOPs. - Supports 2-4x more uncompressed HD streams than competing solutions without dropped frames. - VTrak A-Class enables a single management GUI for the SAN environment.
Detailed Description
New Page 1

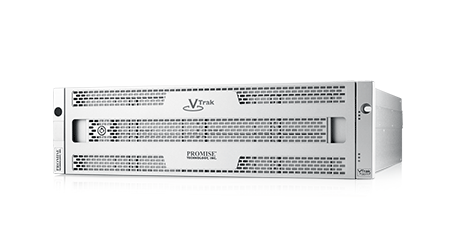

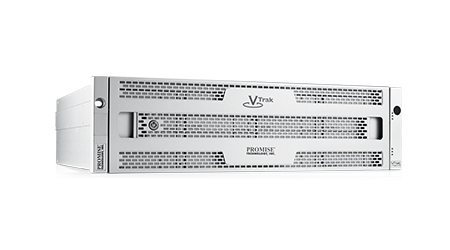

A3800fdm VTrak A-Class Series
The all-in-one storage appliance for rich media
Ideal for multi-user collaboration to ingest, edit, stream and
process rich media. This is a true “solution in a box” RAID storage
subsystem, with an integrated metadata appliance and embedded file
system for big data, along with a NAS Gateway.
Features
Scalable, High Performance &
Bandwidth 64-bit SAN File System
8G FC interface
Data path over FC
Single name space with file
system spanning across multiple storage units
High Availability
Active-Standby SAN FS metadata
server
Active-Active RAID controller
Metadata Journaling
POSIX compliance
Client support for Windows, Mac
and Linux
Multiple clients access shared
files, best for sharing and collaboration
Optional external NAS extension
gateway cluster provides legacy NFS and CIFS
protocol access to files
Online defragmentation
Online expansion of data volume
Each File system volume can be
individually tuned for the usage of the volume
Soft and hard quotas and user
per missions
Local ACL for small user groups
(20 users)
Integration with AD and LDAP
for ACL
Client node ACL
Multipath support on clients
Provides intelligent fault
detection and notification tool on clients
Scale out high capacity and high
performance
The VTrak A3800 shared SAN appliance is
ideal for multi-user collaboration, especially when it comes
to rich media. The VTrakFS™ file system is integrated with
metadata controllers and VTrak primary storage in a single
box, which enables higher performance and workload
productivity, while offering easier workflow management.

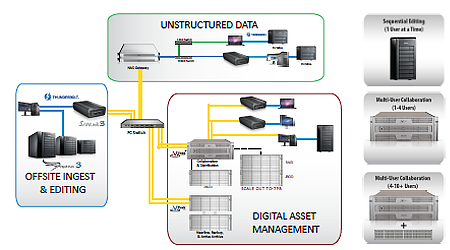

NAS Gateway for massive client access
The NAS Gateway enables hundreds of
clients in the LAN network to access the highly scalable
Fibre Channel SAN appliance via 10Gb Ethernet. While the NAS
Gateway contains a file sharing protocol and file system
management, the key benefit is the VTrak A3800 SAN can scale
to petabytes while still appearing as a single NAS folder
interface! This eliminates the need to reconfigure clients,
unlike traditional NAS environments where costly, additional
storage is required.
Simple and fast: a great combination
VTrak A-Class is optimized for high
performance, high bandwidth, rich media applications
requiring large block sequential IOPs. And because it's an
“all-in-one” metadata appliance, RAID storage subsystem,
and file system (VTrakFS™), it's much less complicated
that competing solutions.
Scalable, reliable and cost-efficient
With A-Class you can “pay as you
grow” from 32TB to over 7PB for long-term storage
investment protection. Additionally, VTrak x30 is the only
Apple-qualified enterprise SAN subsystem, with
high-availability dual controllers, hot-swappable modular
disk array, and a 3 year warranty. The A-Class can save
30-40% on rack space, and help lower energy costs compared
to non-integrated multi-vendor solutions.
Optimized for video-centric
environments
The Promise VTrakFS™ file system is
optimized for leveraging a 8Gb FC interface for large file
data ingesting, streaming, or processing between a SAN and
its clients – unlike traditional NAS file systems. Data is
directly transferred between the SAN appliance and clients
over the SAN FC network. This means higher bandwidth
performance and lower latency data transfers, perfect for
Media & Entertainment, HPC applications, and other
video-centric environments.
Video storage needs are massive.
VTrak is the solution!
Store massive amounts of data required
by media-centric and HPC environments. Scale across multiple
RAID storage subsystems, thus increasing capacity without
sacrificing performance.
Supports 1024 RAID Logical Drives
to make up the volume(s).
JBODs can be added to increase the
storage space.
RAID heads can be added as Storage
Nodes to dynamically increase the storage space as well
as increase the number of FC counts, thereby scaling
performance.
All this can be done online,
without interrupting the clients.
Supersized file system for big data
VTrak A-Class virtualizes storage to
create a single name space, shared storage volume.
Each VTrakFS™ consists of a
Metadata LUN (MDL) and data LUNs (DL)
MDL contains information about file
location, size, access times, etc.
The VTrak A Class head unit manages
directing each client the correct file info over 1Gb
Ethernet, but each client has full speed access to
actual data via 8Gb Fibre Channel

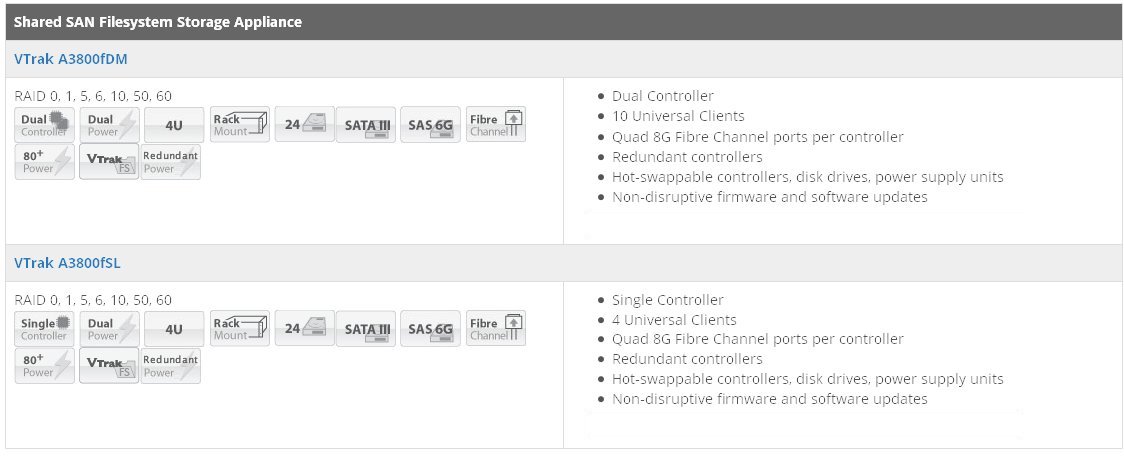

Specifications
Model Number
A3600fdm
Capacity
32TB to 7PB raw
Non-disruptive expansion using:
VTrak x30 Fibre Channel RAID Storage System
VTrak x30 Expansion Chassis
VTrakFS File System
VTrakFS - Integrated clustered file system
Supports up to 8 simultaneous file systems per
system
Serve up to 1 billion files
Directory Support LDAP, Active Directory, Open
Directory
Supports ACLs (Access Control List) and User Quota
Availability
Redundant Controllers Hot-Swappable Power Supply Units
Hot-Swappable Controllers Non-Disruptive
Firmware/Software Updates Hot-Swappable Disk Drive
Interface
Quad 8G Fibre Channel ports per controller (total of 8
ports for high availability system)
RAID Support
RAID 0, 1, 5, 6, 10, 50, 60
Power Eciency
Four levels of advanced power management disk drive
(MAID) support Efficient 80Plus Certified power supplies
Management Tools/Interface
Single VTrak A-Class SAN management software Embedded
management using VTrak A-Class SAN management software
(via Ethernet) Advanced Command Line Interface (Serial
Port or Ethernet via telnet and SSH) Third Party
Management support via SNMP, CIM
Client Licenses
4 Universal Only included Supports hundreds of clients
Warranty
Three year complete system
limited warranty . Optional onsite support for 3 Years
Warranty Details
Warranty Period :
3
Years
