Part Number: CFI-B4043ER
Category
Storage Devices
 Device Enclosures
  OTHER
   SATA
Buy Price GST Ex Buy Price GST Inc
$350.91 $386.00
Stock GST Rate
Call 10%
Description

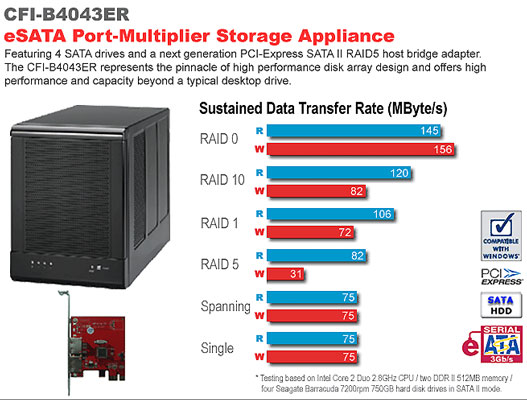

4 x eSATA Port Multiplier Storage Appliance featuring a new generation PCI-Express SATA II Raid 5 host bridge adapter supporting RAID 0, 1, 0+1, 5, 10

Features :

- Provides highest commitment to data security through the use of RAID architecture to back up and protect data.

- Increase storage throughput by use of RAID architecture to combine the throughput of multiple drives into a single volume.

- The sophisticated sparing supports that hardware failure risk can be minimized by automatically regenerating the failed disk?s data on a backup disk.

- Drives can be moved between controllers without losing data.

- The software driver includes support for Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.) to predict disk failures.

PACKAGE CONTENTS

- CFI-B4043PM x 1.
- SiI3132R5 PCI-Express 1X HBA x 1.
- 1.2M eSATA Cable x 1.
- Power Cord x 1.
- Tool-less Screw x 8.
- Setup and Installation Driver Repository CD x 1.
Detailed Description
New Page 1


Product Code CF-B4043ER

Description

FEATURE

Provides highest commitment to data security through the use of RAID architecture to back up and protect data.

Increase storage throughput by use of RAID architecture to combine the throughput of multiple drives into a single volume.

The sophisticated sparing supports that hardware failure risk can be minimized by automatically regenerating the failed disk?s data on a backup disk.

Drives can be moved between controllers without losing data.

The software driver includes support for Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.) to predict disk failures.

SPECIFICATION

A single eSATA host port to 4 SATA 3.5-inch hard disk drives with tool-less screws & door cover.

Power and host status LED, and four devices status/ activity LED.

Design based on the Silicon Image SiI3726 Port-Multiplier with SiI3132R5 PCI-Express 1X HBA.

Industry proved SATALink technology.

Hot-plug and ATAPI support.

Supports host and device link rates of 1.5Gbps and 3Gbps with auto-negotiation.

Full support for FIS-based switching and command-based switching SATA host controllers.

Compliant with SATA II external PHY specification.

Metal chassis (SECC) and plastic panel frame (ABS) design.

135 (W) x 180 (H) x 255 (D) mm, NW: 2.7 Kgs, GW: 3.1Kgs.

150 watts, 100 & 240Vac/ 50~60Hz with FCC, CE requirement.

Single packing (color box with handle) and 4 in 1 outer box.

O/S SUPPORT

Windows 2000/ XP/ Vista/ Server 2003, 32-bit.

Windows XP/ Vista/ Server 2003, 64-bit.

RAID MODE

Striped (RAID 0), Mirrored (RAID 1), Mirrored + Striped (RAID 10), Parity RAID (RAID 5); Hot spare on Mirrored (RAID 1) and Parity RAID (RAID 5).

DISK MODE

Contiguous (Single Disk) and Concatenation (Spanned Disk).

PACKAGE CONTENT

CFI-B4043PM x 1.

SiI3132R5 PCI-Express 1X HBA x 1.

1.2M eSATA Cable x 1.

Power Cord x 1.

Tool-less Screw x 8.

Setup and Installation Driver Repository CD x 1.

Warranty Details
Warranty Period : 1 Year
* Stock amount is quantity held by Award One Technology and its suppliers
