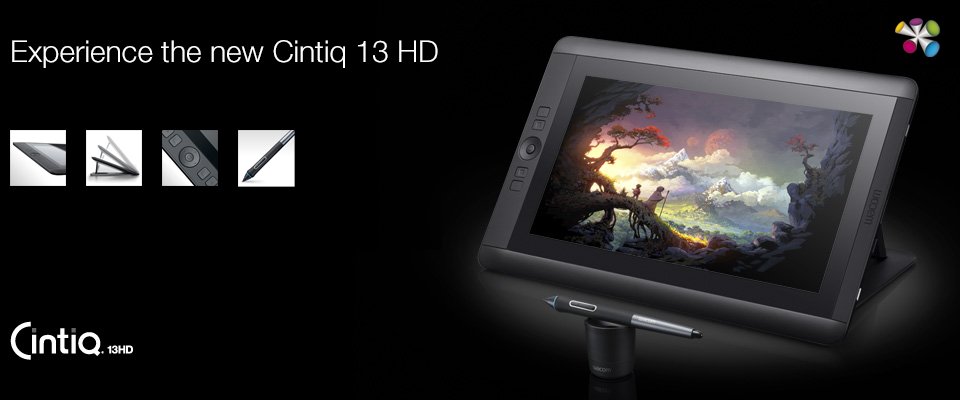

Experience the power of a high-performance Cintiq in a compact, slim design. The Cintiq 13HD is an interactive pen display that allows you to create directly onto a 13.3� HD display. It offers you many of the advantages of the larger Cintiq, like the four time-saving, customizable ExpressKeys, the Rocker Ring, and the Home Button for easy shortcut access. Its high-resolution HD 1920 x 1080 LED display features a 178� viewing angle and renders 16.7 million colors.
The detachable stand adjusts to three different working angles and you can also use the Cintiq 13HD flat on your desktop or in your lap. Wacom�s powerful new Pro Pen with 2048 levels of pressure sensitivity, tilt recognition, and a more comfortable, ergonomic design provides precise control and a better feel than ever. The new Pro Pen comes in a compact carrying case that includes storage for the extra nibs and color rings that help you easily personalize and identify your pen. The Cintiq 13HD experience starts right away � with a new, simple setup. Our convenient new 3-in-1 cable reduces clutter and makes setup on any Mac or PC a snap.
Key features
- High-resolution 13.3 inch HD 1920 x 1080 LED display with a 178� viewing angle and 16.7 million colors
- Compact, slim design takes up minimal desk space
- New Pro Pen with 2048 levels of pressure sensitivity for precise, natural control
- Four customizable ExpressKeys, Rocker Ring and Home Button for easy shortcut access; use it either left- or right-handed
- Detachable stand adjusts to three different working angles
- Simple setup to Mac or PC with new 3-in1 cable
General Specifications
|
Dimensions |
375 x 248 x 14 mm (14.75 x 9.75 x 0.5 in) |
|
Weight |
1.2 kg |
|
Stand adjustability |
Three angles (22�, 35� and 50�), flat if stand is detached |
|
PC and Mac connection |
HDMI, USB |
|
Supported operating systems |
Windows�
8, 7 (32 / 64 bit), Vista SP1, XP SP2 |
|
Model number |
DTK-1300 |
Display
|
Type |
a-Si active matrix thin film transistor (TFT) liquid crystal display (LCD) with in-plane switching (IPS) and LED backlight |
|
Screen size (diagonal) |
338 mm (13.3 in) |
|
Resolution |
Full HD (1920 x 1080 pixels) |
|
Color performance |
16.7 million colors, color gamut 75% Adobe RGB |
|
Aspect ratio |
16:9 |
|
Viewing angle (horizontal/vertical) |
178� (89�/89�) H, (89�/89�) V |
|
Contrast ratio |
700:1 |
|
Brightness |
250 cd/m2 |
|
Response rate |
25 ms |
|
Active area |
299 x 171 mm (11.75 x 6.75 in) |
|
Pixel pitch |
0.15 x 0.15 mm |
|
Cover plate |
tempered etched glass with anti-glare coating |
Graphics Card
|
Type |
any graphics card with DVI or VGA connection (DVI connection recommended) |
Pen & Advanced Control
|
Pen |
Pro Pen |
|
Pressure levels |
2,048 on pen tip and eraser |
|
Type |
Pressure-sensitive, cordless, battery-free |
|
Switches |
Tip switch, two side switches, eraser |
|
Tilt recognition |
�60 levels |
|
Nibs |
Nine standard nibs |
|
Pen case |
Yes |
|
Pen stand |
Yes |
|
Grip area |
Latex-free silicone rubber |
|
Technology |
Patented electromagnetic resonance method |
|
Resolution |
5,080 lines per inch |
|
ExpressKeys� |
Four customizable, application-specific keys |
|
Rocker Ring and Home Button |
4 position customizable |
|
Radial menu |
Yes |
|
Precison mode |
Yes |
|
Display toggle |
Yes |
Connections
|
Cables included |
Wacom 3-in-1 |
|
PC and Mac connection |
HDMI and USB |
|
Display Connection |
Wacom 3-in-1 |
|
Peripheral connections |
USB 2.0 port |
Power and operating requirements
|
Power Supply Output |
19 VDC, 1.58 A (max) |
|
Power Consumption |
9.0 W (max.), 1 W
or less in sleep mode, |
