NEC 50 inch E506 LED Display, 12/7 Usage, Aspect 16:9, Max Resolution 1920 x 1080, Contrast 3000:1, S-PVA Panel, VGA, Component, HDMI, Speakers
- 50 inch VA Panel - HDMI/VGA/Component Inputs -- 1920 x 1080 Resolution - 3000:1 Static Contrast Ratio - 350 cd/m� Brightness - 176�/176� Viewing Angles - 8ms Response Time (GtG) - Support for Over 16.7 Million Colors - Integrated Multimedia USB Player - Built-in Analog/Digital Tuner
Detailed Description
New Page 1
NEC
E506
In a digitised world, signage
no longer is static. Information transfer via digital posters and
information boards are common methods of information transfer. With E506
you can boost your business at low TCO, but with high reliability.
Information where the audience stands close is perfectly transferred on
this 50 inch screen. With the integrated media player, the display is
designed for simple signage usage directly from a USB drive and once
installed starts playing the content automatically at a certain time with
the embedded autostart time schedule function. In this way the display
helps you saving time and money.

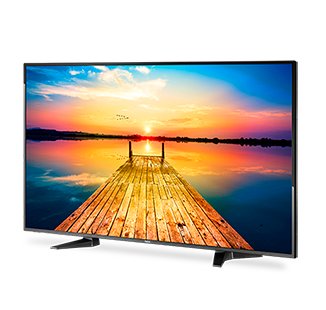

The 50 inch NEC
E506, a direct-lit, commercial-grade display, is ideal for education,
corporate and other digital signage applications. Compared to previous
generation displays, this model’s LED backlighting allows for reduced
power consumption, a thinner depth, a smaller bezel and lighter weight.
Full HD resolution delivers stunning image quality for a variety of
content, and the E506’s integrated tuner and speakers allow users to enjoy
high-definition broadcast capabilities. This display also features a USB
player in which video, audio or JPEG picture files can be loaded and
played in sequence for signage purposes.
Reduced Installation and Operating
Costs - highly energy efficient LED backlit display ensures low power
consumption.
Slim Design and Integrated Speakers -
the aesthetic design is pleasing to the eye and enables easy, low cost
installation.
Effortless content playback - the
integrated USB media player supports various image video file formats
for effortless and standalone content playback.
Future Ready Connectivity - featuring
multiple industry standard digital and analogue signal inputs for
flexible integration into AV infrastructures.
Integrated
multimedia USB player makes digital signage simple
LED
backlighting technology reduces power consumption and allows for a
slimmer cabinet depth
Thinner bezel
improves display's aesthetics
24-Hour On/Off
timer maintains power schedules
Full HD
Resolution allows for excellent image quality
Video signal
wake-up function allows for plug and play fucntionality
Built-in
NTSC/ATSC analog/digital tuner allows for high-definition broadcast
capabilities
Built-in,
low-profile 10W speakers enhance the experience with superior sound
Product Specifications
Display
Panel Technology
VA
Viewable Image Size
50"
Native Resolution
1920 x 1080
Pixel Pitch
0.57mm
Backlight Type
LED Direct-lit
Brightness (typical)
350cd/m2
Contrast Ratio (typical)
3000:1
Viewing Angle
176° Vert., 176° Hor. (88U/88D/88L/88R) @
CR>10
Response Time(Gray to Gray)
8ms
Refresh Rate
60Hz
Aspect Ratio
16:9
Active Screen Area
43.1 x 24.3 in. / 1095.8 x 616.4mm
Orientation
Landscape
Displayable Colors
More than 16.7 million
Synchronization Range
Horizontal (Analog/Digital)
31-83 kHz
Vertical
56-75 Hz
Input Signal
Video
Analog RGB 0.7 Vp-p/75 Ohms
Sync
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level
(Positive/Negative)
Composite sync on green: (0.3Vp-p negative
0.7Vp-p positive)
Connectivity
PC Signal Compatibility
Yes
Macintosh Compatibility
Yes

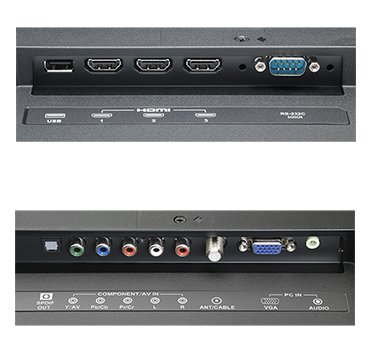

Input Terminals
Digital
HDMI (3)
Analog
VGA 15-pin D-sub, Component,
Composite (shared with
Component)
Audio
HDMI Audio, Stereo Mini-Jack
External Control
RS-232C
Output Terminals
Audio
SPDIF
Power Consumption (typical)
On
109W
ECO Mode Standby
<0.5W
Physical Specifications
Bezel Width (Left/Right, Top/Bottom)
0.47 in./0.47 in., 0.47 in./0.57 in. ;
11.9mm/11.9mm, 11.9mm/14.4mm
Dimensions (WxHxD)
Net (without stand)
44.2 x 25.5 x 3.0 in. /
1123.6 x 646.7 x 77mm
Shipping
47.2 x 28.9 x 5.2 in. / 1200
x 734 x 133mm
Weight
Net (without stand)
28.4 lbs. / 17.5 kg
Shipping
37.5 lbs. / 17.0 kg
VESA Hole Configuration Specifications
4 x M6 x 15mm (400 x 200)
Environmental Conditions
Operating Temperature
32-104°F / 0-40°C
Operating Humidity
10-80%
Operating Altitude
6562 ft. / 2000m
Storage Temperature
32-104°F / 0-40°C
Storage Humidity
5-85%
Storage Altitude
40,000 ft. / 12,192m
Limited Warranty (parts & labor, including
backlight)
