| Description
|

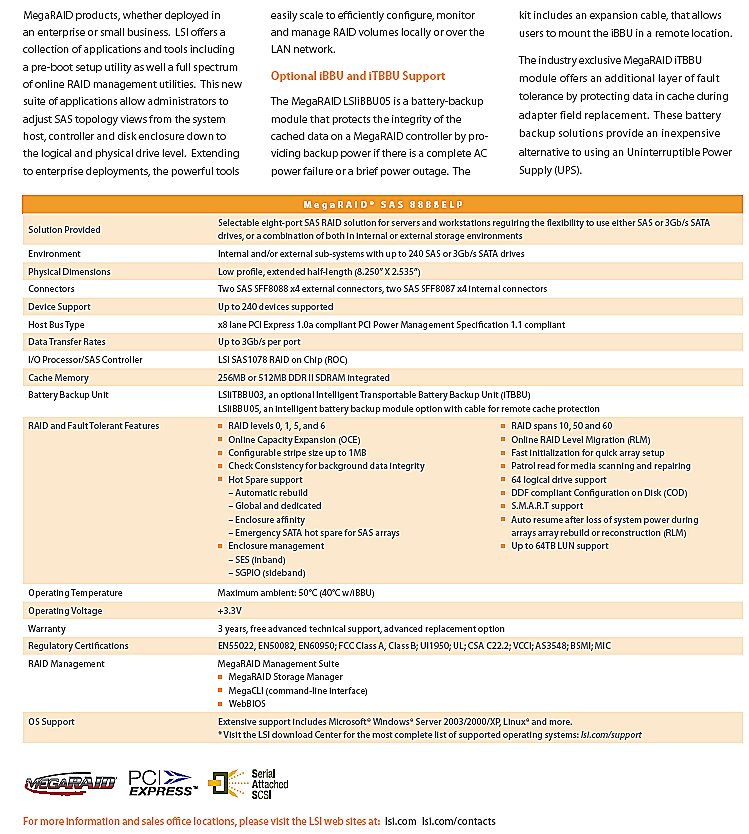

LSI MegaRAID SAS 8888ELP PCI-e x8, 3Gb/s, LSI SAS1078 ROC, 8-port SAS/SATA RAID 0,1,5,6,10,50,60, 2 x internal mini-SAS 4i connectors(SFF-8087) and 2 x external mini-SAS 4x connectors(SFF-8088), 512MB cache, Low Profile, support up to 240 SAS/SATA hard drives, delivers over 1.5GB/s throughput, optional BBU. For SAS RAID sub-system/SAS JBOD
The MegaRAID SAS 8888ELP, with selectable internal and/or external connectors, allows for the ultimate flexibility (8 Internal or 8 External or 4 Internal and 4 External) with support for SATA II and SAS drives, battery backup option and RAID6. RoHS-6.Two SAS SFF8087 x4 Internal connectors & Two SAS SFF8088 x4 External connectorsIncludes: MegaRAID SAS 8888ELP, 1 Mini-SAS to (4) SAS/SATA cable with power (1m), 1 Mini-SAS to (4) SATA fanout cable (0.6m), QIG, LP bracket, Driver CD
|
| Detailed Description
|
Features
- Eight SAS/SATA ports
- Two selectable SAS/SATA connectors
- Two internal Mini-SAS SFF-8087 x4
connectors
- Two external Mini-SAS SFF-8088 x4
connectors
- 3Gb/s throughput per port
- LSISAS1078 RAID on Chip (ROC)
- 500MHz power-PC
- Hardware RAID 5 & 6 parity engines
- Low-profile form factor (7.71� x 2.536�)
- Fits x4 or x8 PCI Express slots
- 512MB DDRII Cache (667MHz)
- Optional battery backup unit
- Connect up to 240 SAS and/or SATA devices
- RAID levels 0, 1, 5 and 6
- RAID spans 10, 50 and 60
- Auto-resume on rebuild
- Auto-resume on reconstruction
- Online Capacity Expansion (OCE)
- Online RAID Level Migration (RLM)
- Comprehensive RAID management suite
- Global and dedicated hot spare with
revertible hot spare support
- Automatic rebuild
- Enclosure affinity
- Emergency SATA hot spare for SAS arrays
- Single controller multipathing (failover)
- I/O load balancing
- Support for extended RAID 1 volumes of up to
240 devices
Benefits
- Selectable connectors allow users to choose
two internal connectors, two external connectors, or one of each,
addressing both internal and external storage requirements
- Supports up to 240 SAS or SATA devices for
maximum design flexibility
- LSISAS1078 ROC, x8 PCI Express host
interface and 667MHz DDRII cache enhance performance of storage for
low-cost server and nearline applications.
- Proven MegaRAID protection for SATA and SAS
drives using RAID 0, 1, 5, 6, 10, 50 or 60
- Battery backup and advanced error detection
and correction capabilities deliver outstanding RAID availability
- Common suite of management utilities for all
MegaRAID SAS/SATA adapters
| Warranty Details
|
Warranty Period :
3
Years
|
|
|
