| Category
|
|
Storage Devices
|
|
 Controllers
|
|
LSI LOGIC
|
|
PCI-E SAS HBA
|
|
3Gb/s SAS HBA
|
| Buy Price GST Ex
|
Buy Price GST Inc
|
|
$240.00
|
$264.00
|
| Stock
|
GST Rate
|
|
Call
|
10%
|
| Description
|
LSI SAS 3041E-R Bare Card, 4-port PCIe, 3Gb/s, SAS, The LSI Logic SAS3041E-R, PCIe, 4-port 3Gb/s Serial Attached SCSI (SAS) HBA has four internal ports connecting to a backplane or direct to 4 SAS or SATA drives.In the Box: SAS3041E-R Card, Driver CD No Cables
PCI Express, 3Gb/s, SAS, 4-port Host Bus Adapter
The LSI SAS3041E-R is a low-cost 4-port 3Gb/s internal SAS/SATA host bus adapter. This card offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. The SAS3041E-R also offers Integrated RAID 0, 1, and 1E for high-performance data protection, making it perfect for medium capacity internal storage applications.
|
| Detailed Description
|

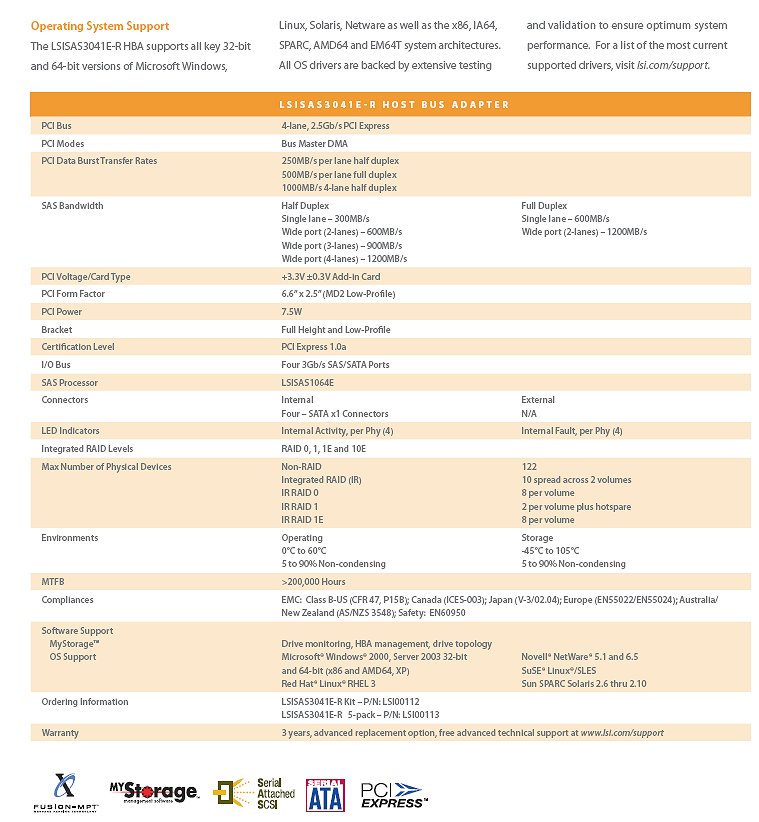

Features
- 3Gb/s per port
- (4) internal SATA x1 connectors
- Integrated RAID 0, 1, and 1E
- 4-lane 2.5Gb/s PCI Express
- MD-2 small form-factor design
- Connects to both SAS and SATA HDDs and tape
drives
- Allows more than 122 total end-point devices
- Fusion-MPT architecture providing more than
140,000 I/Os per second
- Supports all major operating systems
Benefits
- Integrated RAID: LSI RAID avoids additional
host CPU overhead
- Flexibility: combined SAS/SATA array
architecture optimizes cost
- Scalability: addresses up to 122 devices
using SAS expanders
- Speed: with 3Gb/s per port, combines to 2.4
Gb/s full duplex speed
- Complete solution: kit includes all
necessary cables and brackets
- Market leader: LSI SAS powers 80% of SAS
worldwide
| Warranty Details
|
Warranty Period :
3
Years
|
|
|
Award One Technology
Pty Ltd
