Part Number: MB155SP-B
Category
USB
 USB Docks
  ICYDOCK
Buy Price GST Ex Buy Price GST Inc
$223.64 $246.00
Stock GST Rate
Call 10%
Description
IcyDock Black 5x3.5 inch in 3x5.25 inch Hot Swap SATA HDD Cage
Detailed Description
New Page 1

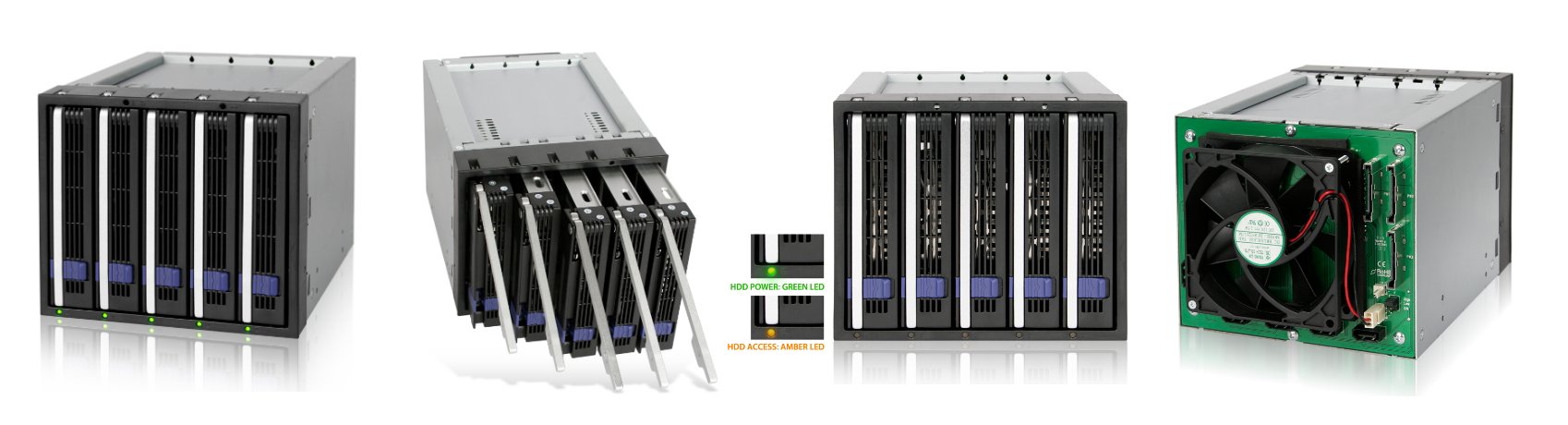

ICY DOCK Black 5x3.5" in 3x5.25" Hot Swap SATA HDD Cage



Features :

  • 5 in 3 RAID backplane module.
  • Fits five 3.5" SATA I / II / III (SATA 6Gbps) hard drives in three 5.25" device bay & fully supports SATA Hot-Swap function.
  • Large 92mm cooling fan with full metal body for excellent heat dissipation for the most intense applications.
  • Compact and space saving to fit multiple drives.
  • Interchangeable EZ-Tray tray design for internal drive security exchangeability expandability and maintenance capabilities. Compatible with DataCage Classic MB45X ICYBento MB559 & ICYCube MB561 series.
  • Enhanced Direct Air Flow Design - Shuts off most vents while adding larger ventilation slots on the backplane PCB.
  • Uses SATA 15 power ports for best compatibility with the newest power supplies.
  • Individual LED hard drive power & activity status notification.
  • Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay.
  •  3 Mode Fan Speed Jumper of high / low / off (100% 60% 0%).
  • Fully Modularized rear outtake cooling fan for easy maintenance or aftermarket replacement with 2 and 3 pin power ports available.
  • ICY DOCK 3 year warranty equivalent to hard drive manufacturer warranty to ensure maximum reliability and long life.



Specifications :

Item Number : MB155SP-B
Color : Black
Chipset : -
Internal Host : 7 pin SATA port
Power Connector : 3 x 15pin SATA Power Port
Drive Fit : 5 x 3.5" SATA I / II / III HDD with Tray
Device Bay : 3 x 5.25"
Transfer Rate : Up to 6 Gb/sec. (depending on hard drive speed)
Insert & Extract connection Via : Direct SATA hard drive connection
External Interface : -
Front Panel Contents : 5 Leds Reset Button
Structure : Metal body w/ partial plastic
Drive Cooling : Replaceable 92 x 92 x 25mm cooling fan Compatible with most 92mm fans with 2pin/ 3pin connector Meta
LED Indication : Drive activity
LED/LCD Display Color : Green : Device Power Amber : Drive Activity
Drive Security : -
RAID Function : -
Hot-Swap : YES
RAID Setting : -
Dimension (L x W x H) (Cm) : 20.04 x 14.64 x 12.50
Weight (Kg) : 1.2
Buzzer Alarm : -
Operating System Support : Windows 98/ SE/ ME/ 2000/ XP/ VISTA/ 7/ 8Mac OS 9.0 or higher
Function Control Interface : -
Packing Content : Quick Installation Guide and Accessory Kit
HDD Capacity : Single HDD tested up to 4TB
Certifications : CE
Warranty Details
Warranty Period : 3 Years
