Part Number: MB662UEAB-2S
Category
Components
 Device Enclosures
  ICYDOCK
Buy Price GST Ex Buy Price GST Inc
$169.09 $186.00
Stock GST Rate
Call 10%
Description
Icydock White Dual Bay FireWire 400 / 800 & USB 2.0 RAID Enclosure
Detailed Description

ICY DOCK White Dual Bay FireWire 400 / 800 & USB 2.0 RAID Enclosure



Features :

* MB662 Series fits 2x 3.5" SATA I/II hard drives for maximum storage.
* Plug & Play USB 2.0 + FireWire 400 & 800 combo with OXFORD924DSB chipset.
* Built-in hardware RAID controller allows four different RAID configurations: RAID 0 (FAST) RAID 1 (SAFE) BIG JBOD
* No additional software and hardware required for RAID capabilities.
* User friendly Screw-less design just plug in the hard drive and play.
* 40 mm cooling fan with adjustable speed control.
* Multi-drive exchangeability & maintenance capabilities.
* Built with Solid Aluminum Construction for body.
* Built in security slot for security cable kit.
* Compatible for both Windows and Mac.






Specifications :
Item Number : MB662UEAB-2S
Color : Pearl White
Chipset : Oxford924DSB
Internal Host : 7 pin SATA port
Power Connector : 12V Power Adapter
Drive Fit : 2 x 3.5" SATA I / II / III HDD
Device Bay : -
Transfer Rate : Up to 480 Mb/sec. via USB 2.0 Up to 400 Mb/sec. via FireWire 400 Up to 800 Mb/sec. via FireWire 800
Insert & Extract connection Via : Direct SATA hard drive connection
External Interface : FireWire400 + FireWire800 + USB2.0 combo
Front Panel Contents : Led
Structure : Aluminum body w/ partial plastic
Drive Cooling : Quiet Cooling Fan w/ Adjustable fan speed VR controlAluminum body heat dispersion
LED Indication : Device Power & Drive Activity
LED/LCD Display Color : Flashing white LED
Drive Security : -
RAID Function : RAID 01BIG & JBOD
Hot-Swap : YES
RAID Setting : DIP Switch 2 Port
Dimension (L x W x H) (Cm) : 20.57 x 13.46 x 6.09
Weight (Kg) : 0.8
Buzzer Alarm : -
Operating System Support : Windows 98/ SE/ ME/ 2000/ XP/ VISTA/ 7/ 8Mac OS 9.0 or higher
Function Control Interface : -

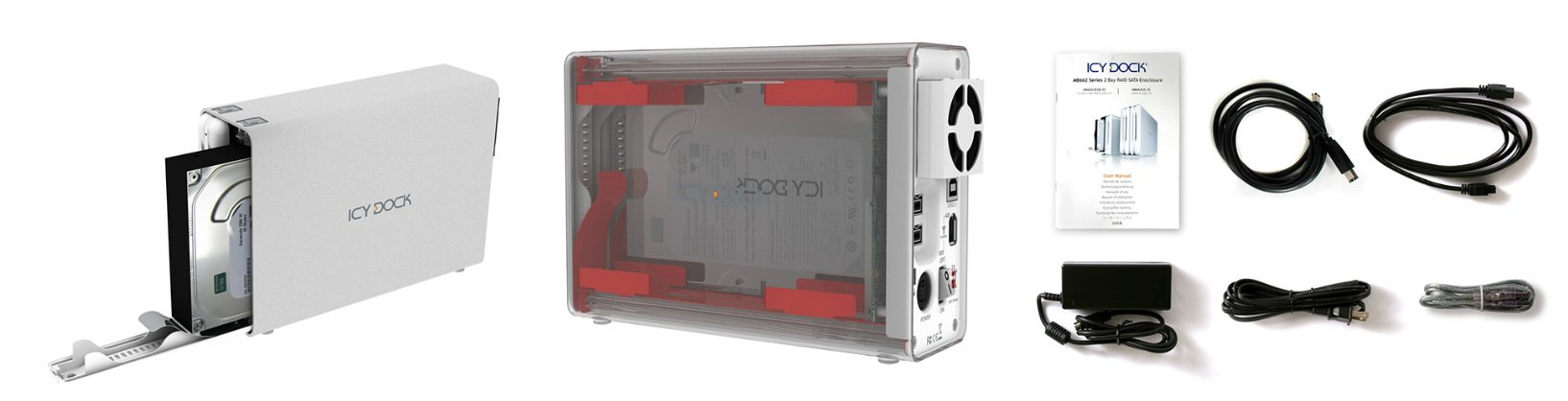

Packing Content : USB2.0 Cable FireWire 400/800 Cable Power Adapter AC Power Cable Quick Installation Guide
HDD Capacity : Single HDD tested up to 2TB
Certifications : CE


Warranty Details
Warranty Period : 3 Years
