Part Number: MB662USEB-2S-1
Category
Components
 Device Enclosures
  ICYDOCK
Buy Price GST Ex Buy Price GST Inc
$210.91 $232.00
Stock GST Rate
Call 10%
Description

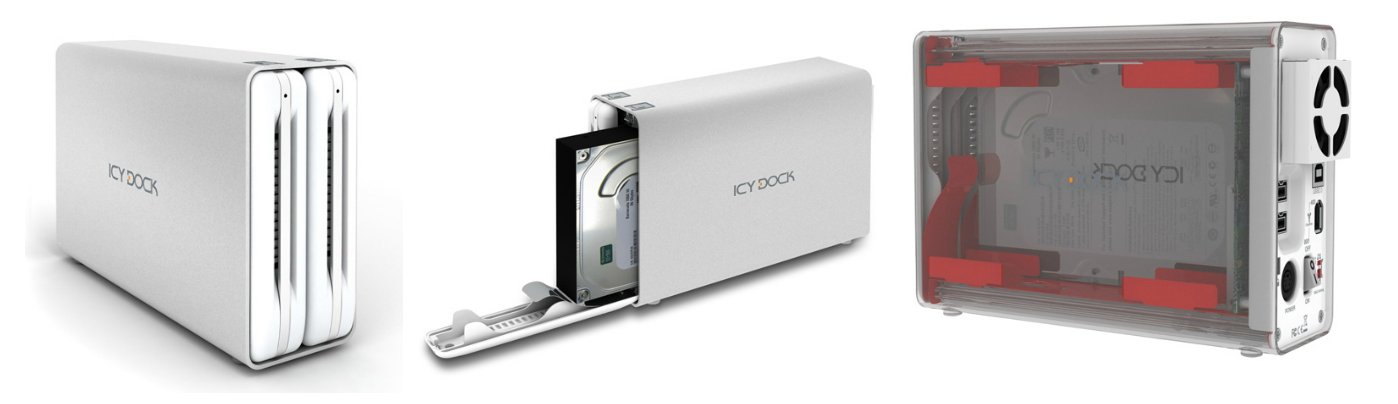

Icydock White Dual bay 1394b eSATA & USB 2.0 RAID Enclosure
Detailed Description

ICY DOCK White Dual bay 1394b eSATA & USB 2.0 RAID Enclosure



Features :

* Support 3TB in each slot for all 4 RAID modes for up to 6TB of storage.
* Front LED indicator light to monitor disk function in case of failure in RAID 1 (SAFE).
* Support 2 x 3.5" SATA I / II / III hard drives for maximum storage.
* Plug & Play USB 2.0 (480 Mbps) + eSATA (300 Mbps) + FireWire 800 (800 Mbps) interfaces with OXFORD946 chipset.
* Built-in hardware RAID controller allows four different RAID configurations: RAID 0 (FAST) RAID 1 (SAFE) JBOD & BIG
* No additional software and hardware required.
* High performance 40 mm Sunon MAGLev cooling fan with adjustable speed control for ultra-quiet operation.
* Tool-Less design for easy hard drive upgrade or replacement.
* Solid aluminum body construction for portability heat dissipation and extra protection.
* Built in security slot for security cable kit.
* Compatible with Mac OS X Time Machine.
* Designed for media professionals using Mac or PC systems.
* Limited 3 year warranty to complement the typical warranty of a hard drive.

Note: Due to the chipset designs swapping hard drives in JBOD mode regardless of the interface used must be done while the enclosure is powered off.

If this is not done the enclosure will not refresh and properly recognize the inserted hard drive.







Specifications :

Item Number : MB662USEB-2S-1
Color : Pearl White
Chipset : Oxford946
Internal Host : 7 pin SATA port
Power Connector : 12V Power Adapter
Drive Fit : 2 x 3.5" SATA I / II / III HDD
Device Bay : -
Transfer Rate : Up to 480 Mb/sec. via USB 2.0 Up to 3 Gb/sec. via eSATA Up to 800 Mb/sec. via FireWire 800
Insert & Extract connection Via : Direct SATA hard drive connection
External Interface : e-SATA + FireWire800 + USB2.0 combo
Front Panel Contents : Led
Structure : Aluminum body w/ partial plastic
Drive Cooling : Quiet Cooling Fan w/ Adjustable fan speed VR controlAluminum body heat dispersion
LED Indication : Device Power & Drive Activity
LED/LCD Display Color : Flashing white LED
Drive Security : -
RAID Function : RAID01 BIG & JBOD
Hot-Swap : YES
RAID Setting : DIP Switch 2 Port
Dimension (L x W x H) (Cm) : 20.57 x 13.46 x 6.09
Weight (Kg) : 0.8
Buzzer Alarm : -
Operating System Support : Windows 98/ SE/ ME/ 2000/ XP/ VISTA/ 7/ 8Mac OS 9.0 or higher
Function Control Interface : -
Packing Content : USB3.0 Cable eSATA Cable FireWire 800 Cable Power Adapter AC Power Cable Quick Installation Guide Accessory Kit
HDD Capacity : Single HDD tested up to 6TB
Certifications : CE
Warranty Details
Warranty Period : 3 Years
* Stock amount is quantity held by Award One Technology and its suppliers
