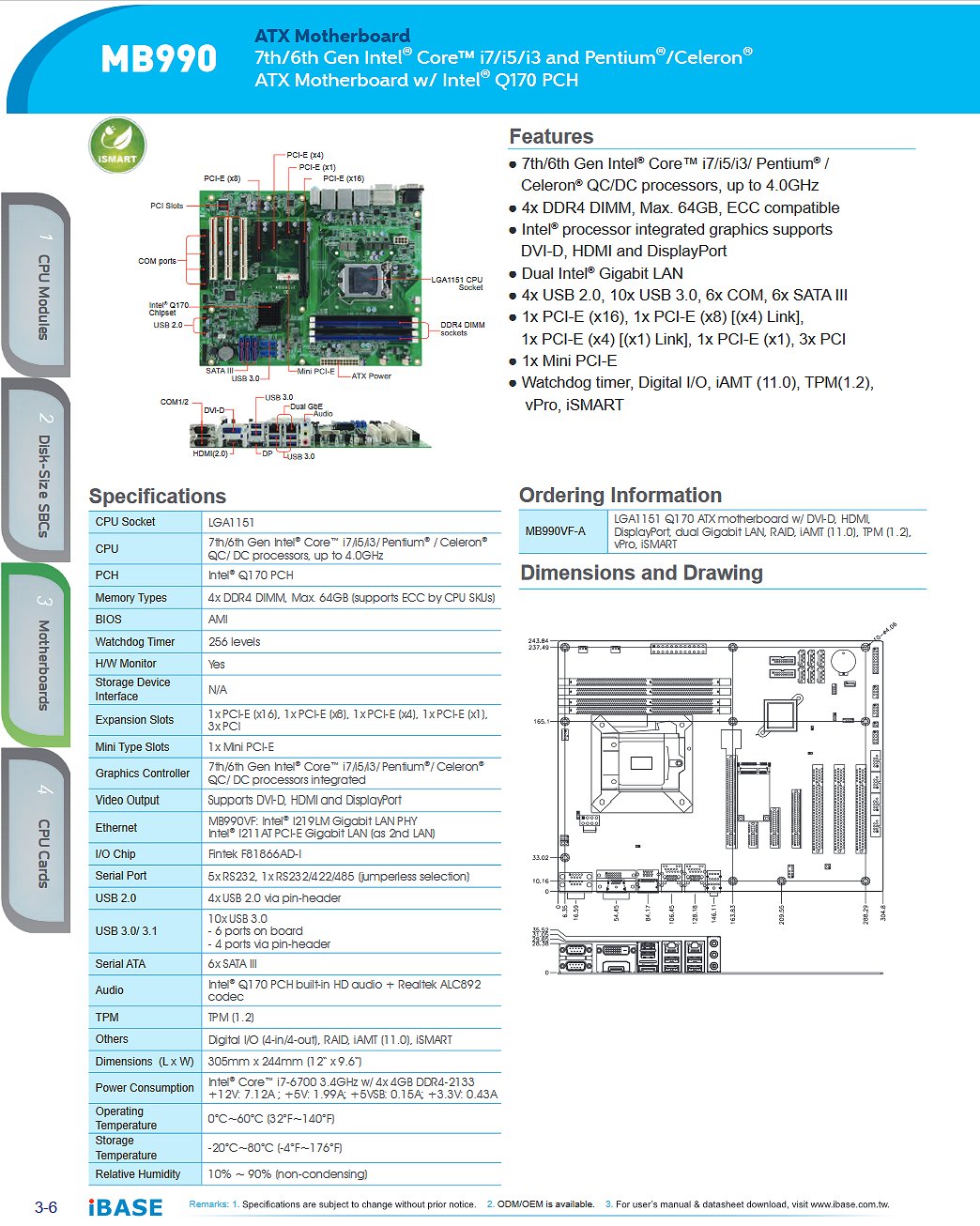

iBase LGA1151 Core i7/i5/i3, Q170 PCH, w/ I219LM GbE LANx1 + Intel I211AT GbE LANx1, VGA (HDMI 2.0/DVID/ DisplayPort), SATAIII x6, COM x6, PCIx3 + PCIe(16x)x1+ PCIe(1x)x1 + PCIe(4x)x1+ PCIe(8x) x1, Mini PCIe, Supporting vPro and iAMT 11.0, iSMART(RoHS), ATX
- 7th/6th Gen Intel Core i7/i5/i3/ Pentium / Celeron QC/DC processors, up to 4GHz
- 4x DDR4 DIMM, Max. 64GB, ECC compatible
- Intel processor integrated graphics supports DVI-D, HDMI and DisplayPort
- Dual Intel Gigabit LAN
- 4x USB 2.0, 10x USB 3.0, 6x COM, 6x SATA III
- 1x PCI-E(x16), 1x PCI-E(x8) [(x4) Link], 1x PCI-E(x4) [(x1) Link], 1x PCI-E(x1), 3x PCI
- 1x Mini PCI-E
- Watchdog timer, Digital I/O, iAMT(11.0), TPM(1.2), vPro, iSMART
The MB990 ATX motherboard supports Intel's 7th/6th Gen Intel Core processors. It features LGA1151 socket for 7th/6th Gen Intel Core, Pentium or Celeron processors based on the code-named Skylake-S micro-architecture. The motherboard supports four DDR4 DIMM slots for up to 64GB of memory, four USB 2.0, ten USB 3.0, six COM and six SATA III ports, as well as graphics interface for DVI-D, HDMI and DisplayPort displays.
Equipped with a wide variety of expansion options including PCI-E(x16), PCI-E(x8), PCI-E(x4), PCI-E(x1), Mini PCIe and three PCI slots, MB990 is best suited for IoT, industrial, digital signage, medical, retail and factory automation applications. The platform comes with two Gigabit Ethernet controllers and supports digital I/O, RAID, TPM 1.2 and iAMT 11.0. The board also has advanced iSMART environmental features that enable power on/off scheduling, power resume and full power down functions.
|
