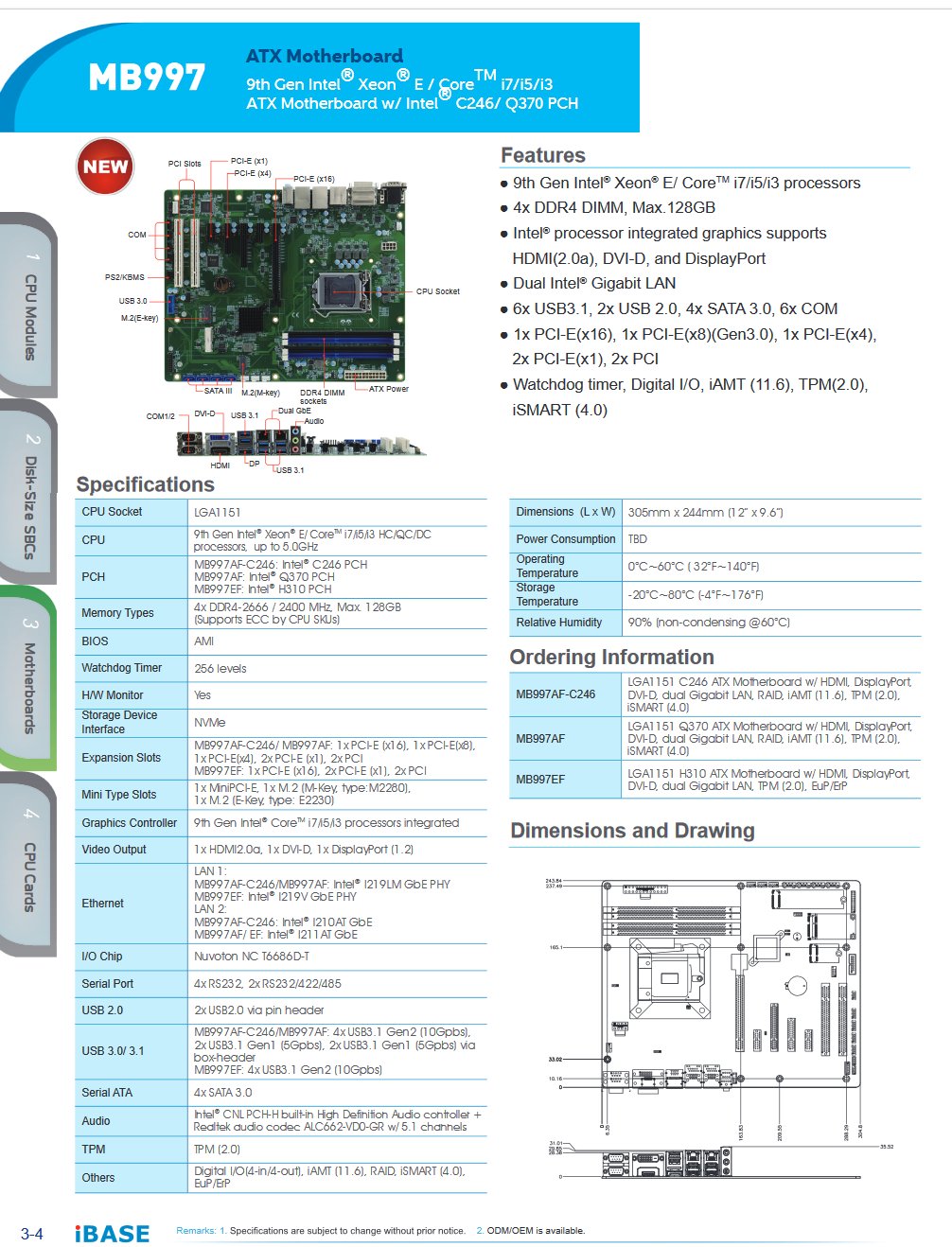

iBase LGA1151 Core i7/i5/i3, Q370 PCH, DDR4 U-DIMMx4, I219LM+Intel I211AT GbE, VGA (HDMI 2.0/DVID/ DisplayPort), SATAIII x4, COM x 6, PCIe(16x) + PCIe(8x) + PCIe(4x) + PCIe(1x) + 2 x PCI, Mini PCIe + M.2 x 2(M2280 + E2230), iAMT11.6 ,TPM(2.0), iSMART (RoHS2) ATX Mainboard
The MB997 ATX motherboard is powered by 9th Gen Intel Core i7/i5/i3 and Xeon processors. It is designed for diverse applications, such as industrial automation, AI integrated systems, and smart retail systems. The MB997 delivers high-performance computing for demanding industrial applications while providing multiple connectivity, expansion and functionality to meet customer requirements.
- 9th Gen Intel Xeon E / Core i7/i5/i3 Processors
- 4x DDR4 DIMM, Max.128GB
- Intel Processor Integrated Graphics Supports HDMI(2.0a), DVI-D, and DisplayPort
- Dual Intel Gigabit LAN
- 1x PCI-E(x16), 1x PCI-E(x8)(Gen3.0), 1x PCI-E(x4), 2x PCI-E(x1), 2x PCI
- Watchdog Timer, Digital I/O, iAMT (11.6), TPM(2.0), iSMART (4.0)
The board supports up to 7 expansion slots including 1x PCI-E(x16), 1x PCI-E(x8)/Gen3.0, 1x PCI-E(x4), 2x PCI-E(x1), and 2x PCI, as well as 6x USB3.1, 2x USB 2.0, 2x SATA 3.0, and 6x COM ports. It can handle up to 128GB DDR4 memory across four slots and support three independent outputs (HDMI 2.0a, DVI-D, and DisplayPort) with 4K resolution each.
The board is loaded with advanced features such as TPM (2.0) hardware-based security to ensure platform integrity, iSMART 4.0 technology that enables power saving, power on/off and power resumption, and also NVMe and CNVi interfaces that bring various performance improvements. Like all IBASE industrial motherboards, MB997 comes with strict revision control, modification control and long-term support. Operating systems supported are Win10 IoT Enterprise and Linux Ubuntu.
|
