SilverStone MS09 M.2 SSD to SATA SSD Portable Enclosure - USB 3.1, Charcoal
- Connector USB Type-A - Data transfer rate USB 3.1 Gen 2 up to 10Gbps (Compatible with USB 3.1 Gen 1 / 3.0 / 2.0 / 1.1) - Support type of M.2 SSD : B Key SATA Type M.2 SSD x 1, Support 22mm x 60mm or 22mm x 80mm size
Detailed Description
Silverstone MS09 M.2 SSD to SATA SSD
Enclosure - USB-A, Charcoal
Features
Support 2260 or 2280 form factors of B key
M.2 SATA SSD
Premium all aluminum exterior with small,
pocketable design
Latest USB 3.1 Gen 2 interface up to 10Gb/s
super speed transfer rate
Robust USB Type-A interface and no driver
installation required
Retractable USB connector design

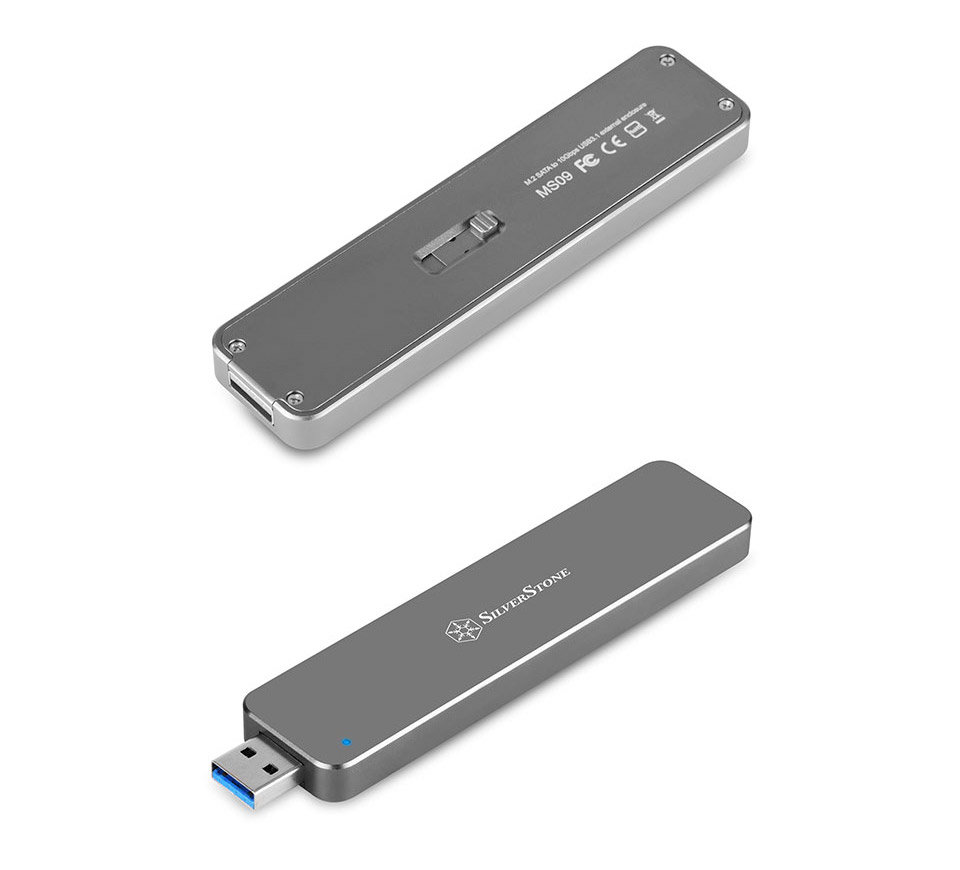

Overview
To take advantage of the increased popularity of
M.2 solid state drives, SilverStone created the MS09, a premium,
pocketable M.2 enclosure. It has an exquisite anodized aluminum exterior
with a size that is nearly as small as common USB thumb drives.
Internally, it fits M.2 SATA SSD up to 80mm so the MS09 can be used with
a wide variety of new or repurposed M.2 SATA SSD from laptops and
turning them into high-speed USB flash drive. To make the most of M.2
SATA SSD’s performance, it also incorporates USB 3.1 Gen 2 interface
for superfast read / write and excellent compatibility. Lastly, the MS09
is designed to work without additional driver installation so you can
conveniently take it anywhere and use it on nearly any PC instantly.
There are three types of M.2 SSDs, please make
sure you know the difference between them before pairing these with your
SilverStone product.
SATA (B key) only support to install this
type
Used for SATA SSDs, and interfaced through the
AHCI driver and SATA 3.0 (6 Gbit/s) port exposed through the M.2
connector.
PCI Express using AHCI (M key)
Used for PCI Express SSDs and interfaced through
the AHCI driver and provided PCI Express lanes, providing backward
compatibility with widespread SATA support in operating systems at the
cost of not delivering optimal performance by using AHCI for accessing
PCI Express SSDs.
PCI Express using NVMe (M key)
Used for PCI Express SSDs and interfaced through
the NVMe driver and provided PCI Express lanes, as a high-performance
and scalable host controller interface designed and optimized especially
for interfacing with PCI Express SSDs. NVMe has been designed from the
ground up, capitalizing on the low latency and parallelism of PCI
Express SSDs, and complementing the parallelism of contemporary CPUs,
platforms and applications.
Please note: The MS09 is only designed for M.2
SATA SSD, it is not compatible with NVMe SSD.
Specifications
Model No.
SST-MS09C
Color
Charcoal
Connector
USB Type-A
Data transfer rate
USB 3.1 Gen 2 up to 10Gbps (Compatible
with USB 3.1 Gen 1 / 3.0 / 2.0 / 1.1)
Material
Aluminum unibody shell and plate
Controller
VIA VL715
Support type of M.2 SSD
B Key SATA Type M.2 SSD x 1
Support 22mm x 60mm or 22mm x 80mm size
LED indicator
Solid Blue: Powered
Blinking Blue: Reading / writing
Operating system support
Microsoft Windows 10/8.1/8/7
(32bit/64bit) or future release version
Mac 10.8.6 or future release versions
Net weight
33g 5g
Dimension
110mm (W) x 9mm (H) x 26mm (D)
4.33" (W) x 0.35" (H) x 1.02" (D)
Warranty Details
Warranty Period :
1
Year
