| Description
|

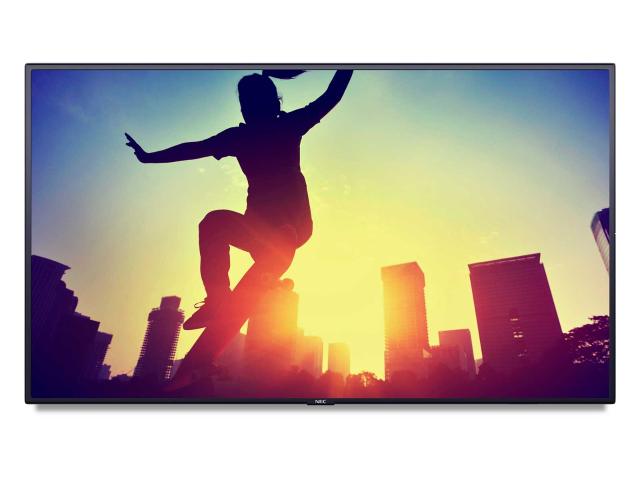

NEC 48 inch P484 MultiSync LCD Professional Large Format Display, 24/7 Usage, Aspect 16:9, Max Resolution 1920 x 1080, Brightness 700 nits, Contrast 4000:1, S-PVA Panel, VGA, DVI-D, 2 x HDMI, 2 x Displayport, USB, Lan, Speakers, Optional OPS
|
| Detailed Description
|
New Page 1
The Definition of Digital Signage
Modular and scalable, NEC’s
MultiSync ® P484 display brings powerful capability
for Digital Signage. Deliver your message with impact and seamless
simplicity for the most convincing results.
Compelling readability even in
bright ambient light conditions is guaranteed with high brightness
levels of 700 cd/m² combined with an anti-glare surface. Its
modern, slim design forms an elegant digital surface which
perfectly complements the surrounding architecture and integrates
seamlessly into any environment. The wide range of connectivity
options and compatibility with high resolution signals up to
4K/60Hz secure a futureproof investment. The Open Modular
Intelligence (OMI) approach provides tailor-made Signage
Solutions, where scalable computing power such as Raspberry Pi
compute modules or OPS Slot-in PCs are seamlessly embedded into
the display.
The 48” MultiSync ®
P484 is the perfect choice for short and medium viewing distances
in retail environments, passenger information, quick service
restaurants and all other public spaces.
Benefits
- Superb
readability in bright light environments – crisp
playback of content thanks to high brightness output of 700 cd/m²
and anti-reflective screen surface delivers clearly visible
messages even under varying and demanding ambient conditions.
- Enhanced
imaging performance – advanced settings of all relevant
visual parameters allow full control of brightness, colour,
gamma and uniformity via the Spectraview Engine for precise,
natural images.
- Modern
and slim design – robust yet elegant allowing for an
unobtrusive integration into any application and environment.
- Future
Ready with Open Modular Intelligence Expansion – upgrade
the power of your display at any time by seamlessly
integrating one of NEC’s options for OPS Slot-in PCs,
Raspberry Pi compute modules or signal interfaces for content
feed and computing.
- Mission-critical
24/7 ready operation – the meticulous selection of
industrial-grade components and careful design focused on
demanding usage scenarios accompany an impressive and
continuous viewer experience.
- Ease
of use and operation – Smart installation, operation and
maintenance functionality ensures accurate performance over
the entire lifetime of the display saving time, effort and
resources.
- All-in-one
Signage solution integrated – the integrated mediaplayer
for simple signage use supports easy content playback and
management.
- Free
Download of Multi-Display Management Software – with
NaViSet Administrator 2 you can manage all your connected
display devices from a centralised location.
|
Specifications :
Product Information
Product Name MultiSync®
P484
Product Group LCD
48" Professional Large Format Display
Display
Panel Technology S-PVA
with edge LED backlights
Active Screen Area (W x H) [mm]
1,054.1 x 592.9
Screen Size [inch/cm]
48 / 120.9
Brightness [cd/m²] 700,
500 Eco (shipment setting)
Contrast Ratio (typ.)
4000:1
Viewing Angle [°] 178
/ 178 (at contrat ratio > 10:1)
Colour Depth [bn] 1.073
(10bit)
Response Time (typ.) [ms]
8 (grey-to-grey)
Supported Orientation
Landscape, Portrait, Face Up, Face
Down
Synchronisation Rate
Horizontal Frequency [kHz]
31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz]
24 - 85
Resolution
Native Resolution 1920
x 1080
Supported Resolutions
4096 x 2160; 3840 x 2160; 1920 x
2160; 1920 x 1200; 1920 x 1080; 1680 x 1050; 1600 x 1200; 1440
x 900; 1400 x 1050; 1366 x 768; 1360 x 768; 1280 x 1024; 1280
x 960; 1280 x 800; 1280 x 720; 1024 x 768; 800 x 600; 640 x
480
Connectivity
Input Video Analogue 1
x VGA
Input Video Digital 1
x DVI-D (with HDCP); 2 x DisplayPort (with HDCP); 2 x HDMI
(with HDCP)
Input Audio Analogue 2
x 3,5 mm jack
Input Audio Digital 2
x DisplayPort; 2 x HDMI
Input Control 1
x LAN 100Mbit; 1 x Remote Control (3.5 mm jack); 1 x RS232
Input Data 1
x microSD (MediaPlayer); 1 x USB 2.0 (MediaPlayer); 1 x USB
2.0 (Service); 1 x USB Type-B (Upstream); 2 x USB 2.0 (Compute
Module, 1 x 5V/2A powered)
Output Video Digital 1
x DisplayPort (loop through: DisplayPort, OPS slot-in PC)
Output Audio Analogue
1 x 3,5 mm jack
Output Control 1
x LAN 100Mbit
Open Modular Intelligence
OPS Slot Slot
Technology: Open pluggable specification (NEC / Intel OPS
standard)
OPS Max. Current / Power
Consumption [A / W] 10
/ 61
Compute Module Slot Slot
Technology: Compute Module Slot (NEC proprietary standard)
Sensors
Ambient Light Sensor Integrated,
triggered actions programmable
Human Sensor Optional,
external, 4-5m range, triggered actions programmable
Temperature Sensor Integrated,
3 sensors, triggered actions programmable
NFC Sensor Integrated,
2cm range, free NEC Android App required
Electrical
Power Consumption [W]
115 Eco (shipment setting), 140
Power Savings Mode [W]
3 (Networked Standby); < 0.5
(ECO Standby)
Power Management VESA
DPMS
Environmental Conditions
Operating Temperature [°C]
+0 to +40
Operating Humidity [%]
20 to 80
Mechanical
Dimensions (W x H x D) [mm]
1,086.5 x 625.3 x 54.7
Bezel Width [mm] 13.2
(left and right); 13.2 (top and bottom)
VESA Mounting [mm] 300
x 300 (FDMI); 4 holes; M6
Ingress Protection IP5x
(front); IP2x (back)
Additional Features
Special Characteristics
Ambient Light Sensor; AMX NetLinx
Support; ASCII Control Commands; Auto ID assignment; Auto
tiling function; Automated Email Alert; CEC Support; Crestron
RoomView Support; DICOM support; Display Browser Control;
Emergency Notification; Full System Scheduler; Hardware colour
calibration possible; Image flip; Intelligent Wireless Data
(based on NFC); KeyGuide; MediaPlayer with Browser Control;
NaViSet Administrator 2; OmniColor Control; OSD rotation for
portrait mode; PJLink Support; Point Zoom Function; Powered
USB-Port; Programmable 12-bit LUT with 3 memory banks;
Removable Logo; Secure Mode Operation; Slim LED Indicator;
SNMP Support; TileMatrix (10 x 10); User readable log
function; Various picture in picture options
Colour Versions Black
Front Bezel, Black Back Cabinet; optional coloured overframes
Safety and Ergonomics
C-tick; CE; EMC Class B; FCC; PSB;
RoHS; TÜV GS; UL/C-UL or CSA; VCCI
Audio Integrated
Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)
Shipping Content CD-ROM
(User Guides/Manuals); Display; DVI-D cable; Power Cable;
Remote Control
Warranty 3
years warranty incl. backlight; additional services available;
optional 4. + 5. year warranty extension
Available Options
Accessories Feet
(ST-401); Speaker (SP-TF1, SP-484SM); Trolley (PDMHM-L); Wall
mount (PDW S 32-55 L and P, PD02W T M L, PD03W T M P)
Compute Module Slot NEC
Compute Module; Raspberry Pi Compute Module 1 and 3
OPS Slot HD-SDI
1.5G, 3G; HDBaseT receiver; Intel® Atom, Celeron and Core
CPUs; OPS-2C HDMI + DP Interface; OPS-2C Quad 3G SDI
MediaPlayer
Supported Image Formats
JPG (baseline, progressive, RGB,
CMYK); max. resolution 5000 x 5000; PNG (interlace, alpha
channel); max. resolution 4000 x 4000
Supported Video Formats
MP4 / MOV / FLV (video H.264,
audio MP3, AAC); max. resolution 1080p at 30 Hz, 1080i at 60
Hz; MPG (video mpeg1/2, audio mpeg audio layer2/3, AAC-LC); MP
@ ML, MP @ HL; WMV (video H.264, wmv advanced L3, wmv simple /
main, audio mp3 wmv std); max. resolution 1080p at 30 Hz,
1080i at 60 Hz
Supported Audio Formats
MP3 (MP3); max. bit-rate 320 kBit/s;
WAV (LPCM); max. 48 kHz sampling
Supported File Storage / File
System MicroSDHC /
FAT16, FAT32; USB 2.0 / FAT16, FAT32
Green Features
Energy Efficiency Ambient
light sensor; Annual energy consumption: 168 kWh (based on 4
operating hours per day); Carbon savings meter; ECOMode;
Energy efficiency class: B; Human Sensor
Ecological Materials Manuals
on CD; Optional feet
Ecological Standards EnergyStar
(TBD).(TBD)
|
