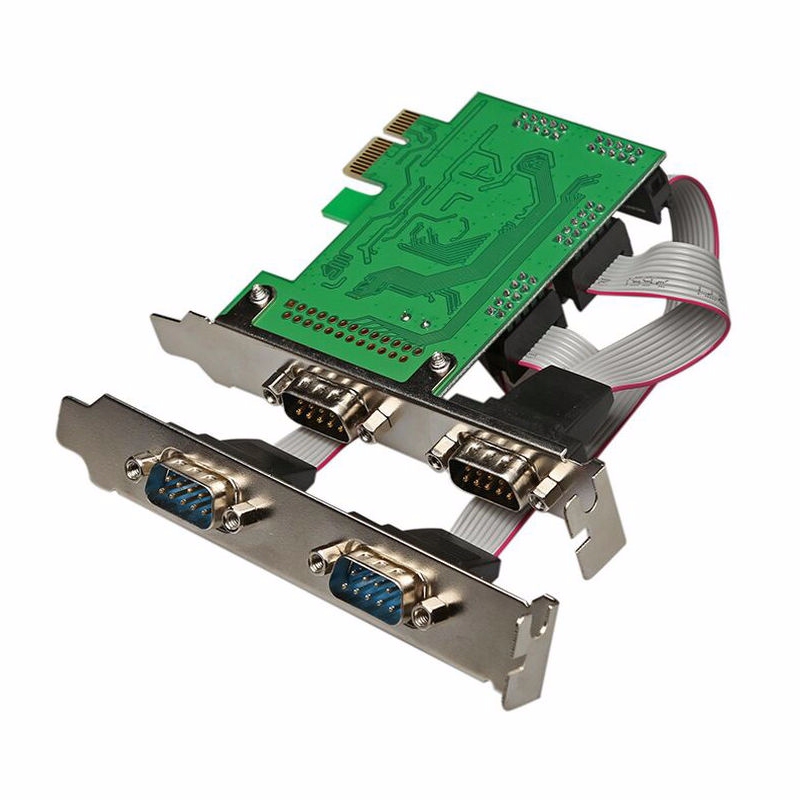

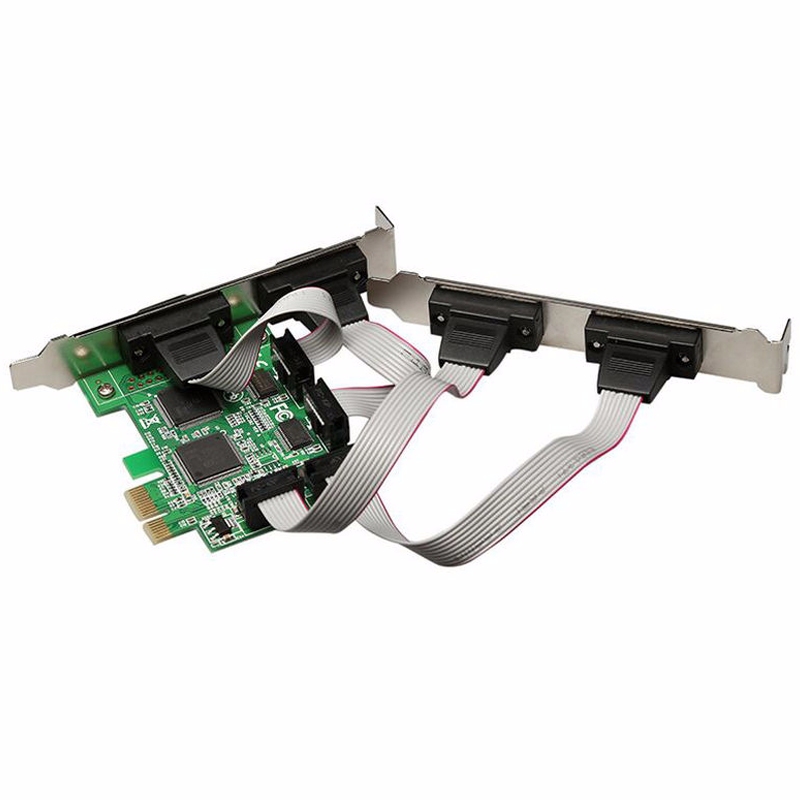

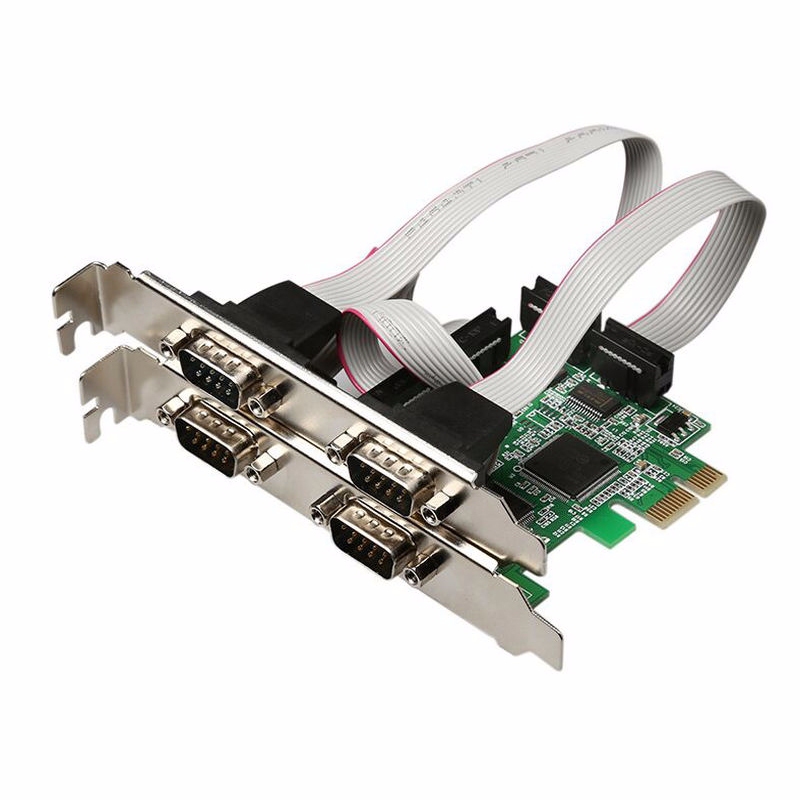

Easily add 4 Serial ports to full tower computer case or 1 port to slim server chassis

Specifications:

• Fully Compliant with PCI-e Base Specification, Revision 1.0a
• PCI-e Multi Function Peripheral Controller with x1 Lane Interface
• Support for D1, D2, D3hot and D3cold
• Utilizes 100-Mhz Differential PCI-e Common Reference Clock
• Supports PCI-e Power Management
• Serial Port:
• 2 16c450/550/Extended 550 Compatible UARTs
• Supports RS232 Modes
• Bi-directional Speeds from 50bps to 16Mbps/Port
• Full Serial Modem Control
• Supports Hardware, Software Flow Control
• 5, 6, 7, 8 and 9-bit Serial Format Support
• Support MODEM Modem Signals CTS, DSR, RI, DCD, the DTR, RTS, Convert RS232 Level
• Even, Odd, None, Space & Mark Parity Supported
• Custom BAUD Rates Supported with External Clock or by Programming Internal PLL
• On Chip 256 Byte Depth FIFOs in Transmit, Receive Path of Each Serial Port
• Support Remote Wakeup and Power management Features
• Serial Port Transceiver Shutdown Support
• Support Slow IrDA on all Serial Ports

Package Includes:

4 Serial Ports PCI-e Controller Card:1PCS

Driver Mini CD:1PCS

Software Requirement:

Windows 8 (32/64bit)

Windows 7

Vista

Windows XP

Windows ME

Windows 98SE

Server 2003

Server 2000 (32bit only)

Linux Kernel 2.4 & 2.6

Mac 10.4 & Above
