Part Number: PS-TPD-0500NNFAGA-1
Category
Components
 Power Supply
  THERMALTAKE
Buy Price GST Ex Buy Price GST Inc
$99.09 $109.00
Stock GST Rate
Call 10%
Description

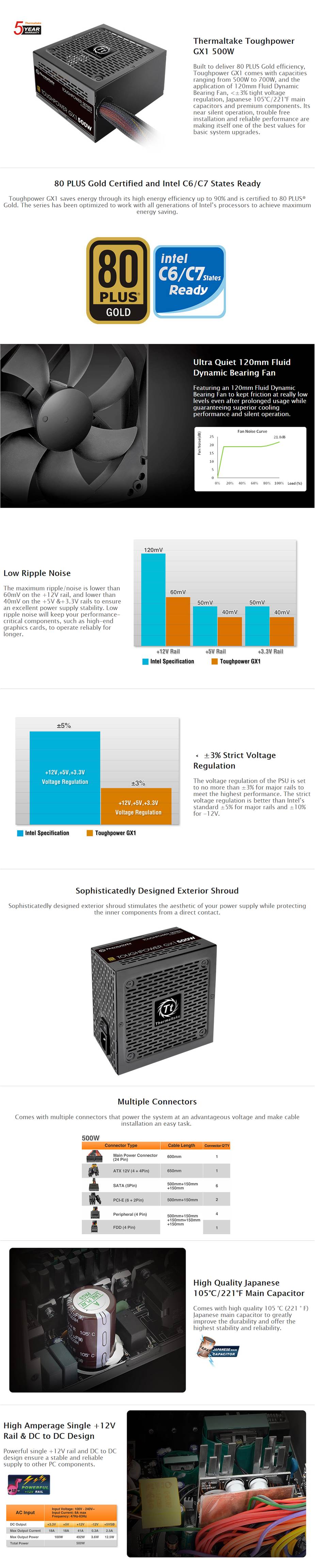

Thermaltake 500w Toughpower GX1 80 PLUS Gold Power Supply

- ATX Form Factor
- 12cm fluid dynamic bearing fan
- 80 PLUS Gold at 115Vac input
- -20�C to + 70�C Storage Temperature
- 8A max input current
- 2x PCI-E 6+2pin
- PS-TPD-0500NNFAGA-1
- 5 Years Limited Warranty
Detailed Description


P/N PS-TPD-0500NNFAGx-1
Model SP-500AH2NCG
Type ATX 12V v2.4 and EPS v2.92
Max. Output Capacity 500W
Peak Output Capacity 600W
Color Black
Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 140mm(D)
PFC (Power Factor Correction) Active PFC
Power Good Signal 100-500 msec
Hold Up Time > 12msec at 80% of full load
Input current 8A max.
Input Frequency Range 47Hz - 63Hz
Input Voltage 100V � 240V~
Operating Temperature 0�C to + 40�C
Operating Humidity 20% to 90%, non-condensing
Storage Temperature -20�C to + 70�C
Storage Humidity 5% to 95%, non-condensing
Cooling System 12cm fluid dynamic bearing fan
Efficiency Meet 80 PLUS�Gold at 115Vac input.
MTBF 100,000 hrs minimum
Safety Approval CE/cTUVus/TUV/FCC/BSMI/EAC/S-Mark
PCI-E 6+2pin 2
Warranty Details
Warranty Period : 5 Years
