Ideal R156004 SignalTEK CT Data Cable Transmission Tester
Transmission tester for network cabling - test to 802.3ab Gigabit Ethernet standards for a fraction of the price of a cabling certifier
Detailed Description
More info
If you install or
maintain data cabling,
SignalTEK CT allows you to
generate PDF test reports
that prove installed links
run at Gigabit Ethernet
transmission rates.
For installers, this means
having a cost-effective way
to demonstrate that the
copper cabling was installed
correctly and is capable of
supporting Ethernet
applications. By proving
real world performance,
SignalTEK CT confirms a
professional job - reducing
the risk of call backs.
SignalTEK CT also gives
network owners the assurance
that installed cabling will
support bandwidth hungry
services like VoIP, IP CCTV
and video streaming
following moves, adds and
changes.
Test Reporting
SignalTEK CT
automatically
generates test
reports in PDF or
CSV format. The
summary page of each
report can be
customised to
include logo,
company and operator
details. Choose
between 3 different
reports that can
show either passed,
failed or all test
reports in each
report:
Summary
Brief
Full (see
example)

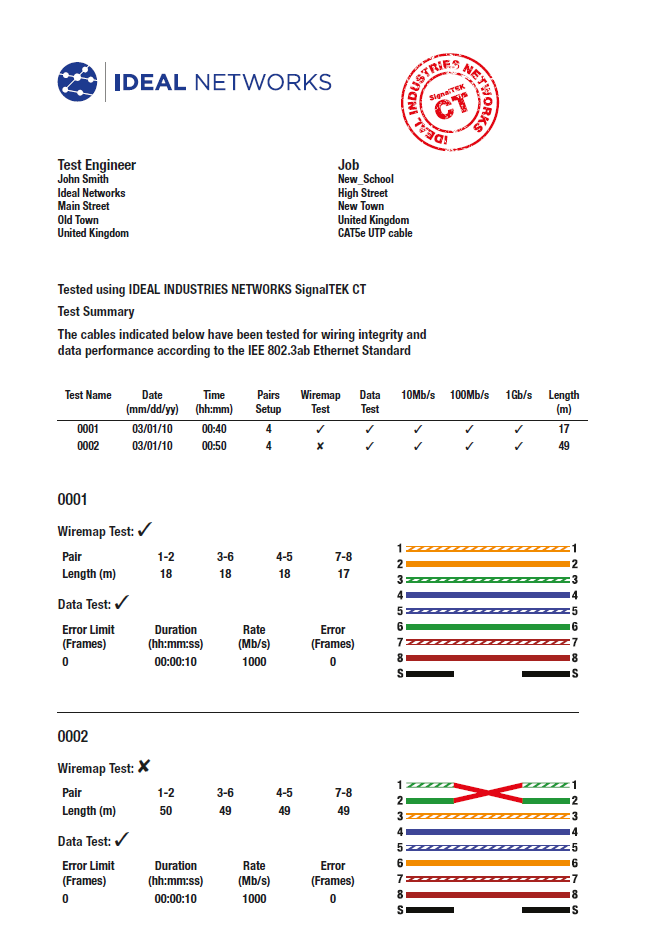

Test
Reports
SignalTEK CT
automatically
generates test
reports in PDF
format. Reports can
be uploaded to a
removable USB memory
stick for later PC
import.
The summary page
of each report can
be customised to
include logo,
company and operator
details.
The summary
provides an overview
for each link tested
including date and
time of test, the
overall result of
the wiremap and data
tests, the Ethernet
rates that the cable
can support, and the
individual and total
cable lengths.
Detailed
information relating
to each tested link
is reported on
subsequent pages.
This includes a
graphical image of
the wiremap,
pass/fail
information, length
per pair, frame
errors and data
rate.
Warranty Details
Warranty Period :
1
Year
