The SAT2IDEADP SATA to IDE hard drive adapter enables you to use your 2.5-inch/3.5-inch IDE-based (PATA) hard drives in most StarTech.com SATA-based HDD docking stations and drive duplicators.

The SATA-IDE adapter features all-metal construction that ensures maximum durability, and is fully compatible with IDE hard drives up to ATA-133 (133MBps).

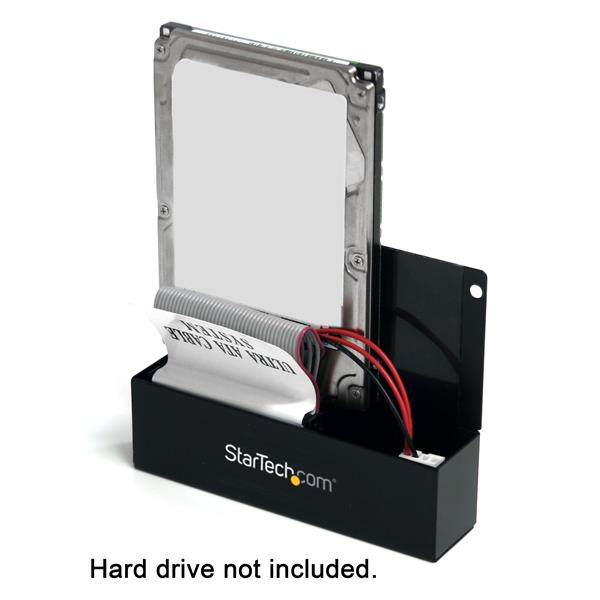

The unique mounting style of the SATA/IDE adapter enables it to be easily mounted to an IDE/ATA hard drive, and inserted into a SATA hard drive dock bay, for quick and easy retrieval of data from older HDDs. The adapter can also be used to install IDE hard drives into SATA-only desktop computers, or any other scenario that requires an IDE hard drive to be connected through Serial ATA.

The SAT2IDEADP hard drive adapter works with most StarTech.com SATA HDD Docking Stations and Duplicators, including:

SATDOCK2REU3
SDOCK2U33
SDOCKU33EBV
UNIDOCKU33
SATADOCK22UE
SATDOCK2UEGB
SATDOCK22RE
SATDOCK22R
SATDOCKU3S
SATADOCKU2
SATADOCKU2E
SATDOCK4U2E
SATDOCK4U3E
SATDOCKCRH
SATDOCKU3E
SATDOCKU2EGB
SATDOCKU2GB

Backed by 2-year warranty and free, lifetime technical support.

The StarTech.com Advantage

Unique design allows any 2.5/3.5in IDE hard drive to be used and inserted (upright) into a SATA HDD docking station or duplicator drive bay
Backed by a StarTech.com 2-year warranty and free lifetime technical support

Supports any operating system.
No additional drivers or software required.

Applications

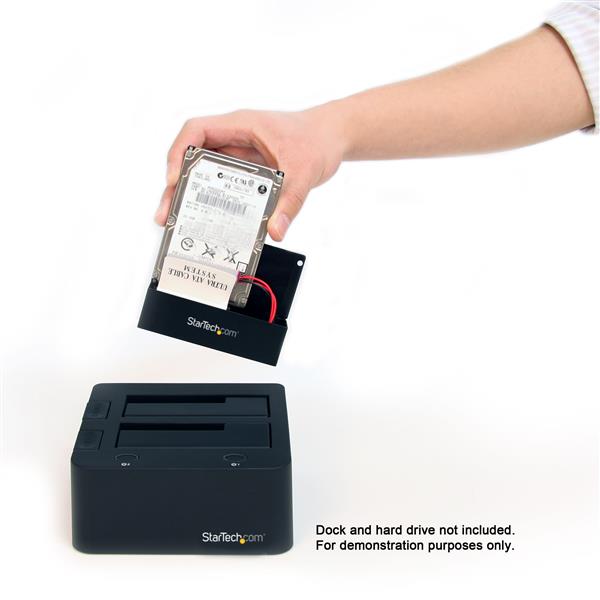

Use old IDE/PATA hard drives in a SATA hard drive docking station
Install an IDE/PATA hard drive into a computer with only SATA ports
Easily recover data from a 2.5in (laptop) IDE hard drive, by connecting it to a SATA-enabled computer or docking station
Technicians who are required to work with a wide variety of old and new technologies

Warranty Information

Warranty

2 Years

Hardware

Chipset ID

Jmicron - JM20330

Compatible Drive Types (Type and Rate)

IDE (ATA)

Drive Installation

Fixed

Drive Size

2.5in & 3.5in

Fan(s)

LBA support

48-bit

Number of Drives

Connector(s)

Connector Type(s)

1 - SP4 (4 pin; Small Drive Power) Male

Drive Connectors

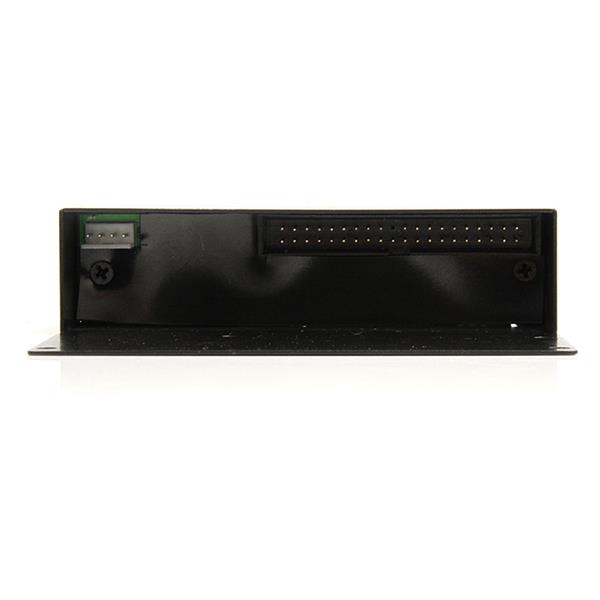

1 - IDE (40 Pin; EIDE/PATA) Female

1 - IDE (44 Pin; EIDE/PATA; 2.5" HDD) Female

1 - LP4 (4 pin; Molex Large Drive Power) Female

Host Connectors

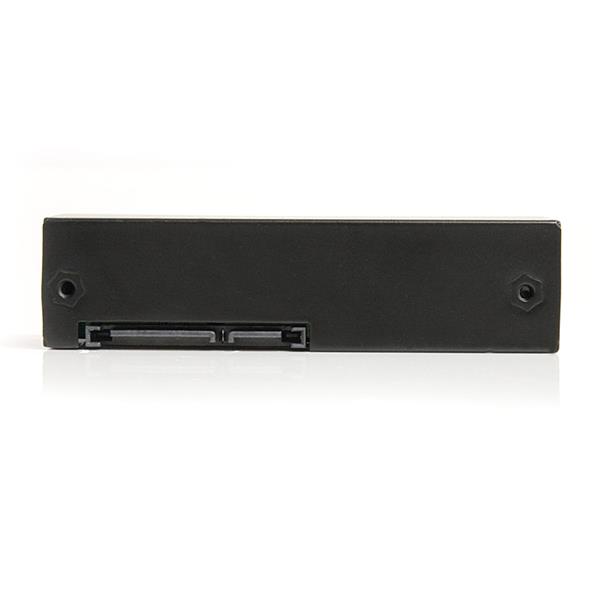

1 - SATA (7 pin; Data) Plug

1 - SATA Power (15 pin) Plug

Software

OS Compatibility

OS independent; No software or drivers required

Physical Characteristics

Color

Black

Enclosure Type

Steel

Product Height

1 in [26 mm]

Product Length

4 in [101 mm]

Product Weight

3.7 oz [104 g]

Product Width

3.1 in [78 mm]

Environmental

Humidity

8% ~ 90% RH

Operating Temperature

5�C to 80�C (41�F to 176�F)

Storage Temperature

-40�C to 70�C (-40�F to 158�F)

Packaging Information

Shipping (Package) Weight

8.1 oz [230 g]

What's in the Box

Included in Package

1 - SATA to IDE adapter

1 - 40-pin IDE cable

1 - 40-pin to 44-pin IDE cable with power

1 - SP4 to LP4 Power cable

1 - Package of mounting screws

1 - Instruction Manual
