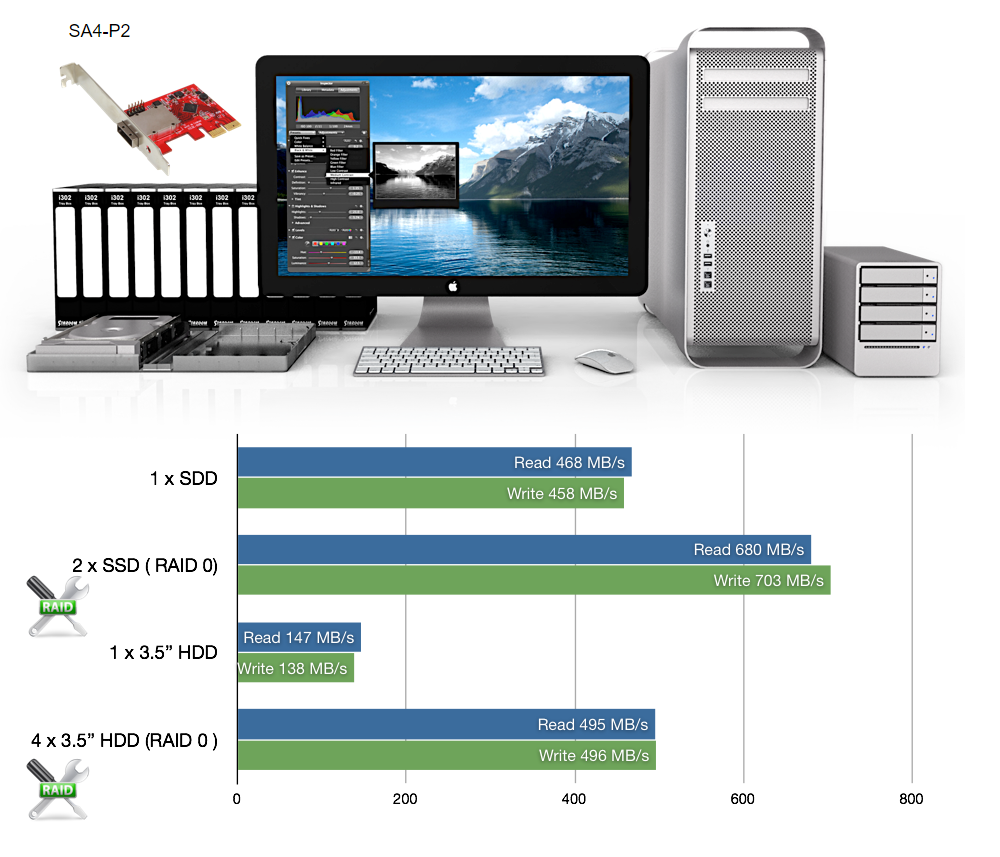

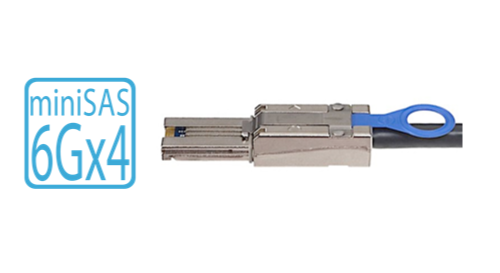

A single mini-SAS cable provides four channels of 6G data transfer. When combined with the ST4-U5, users can allot 6G of bandwidth each for four separately installed drives, enabling each drive to reach its maximum read and write speeds�even SSDs! Get ready to experience higher transfer rates and increased productivity like never before!

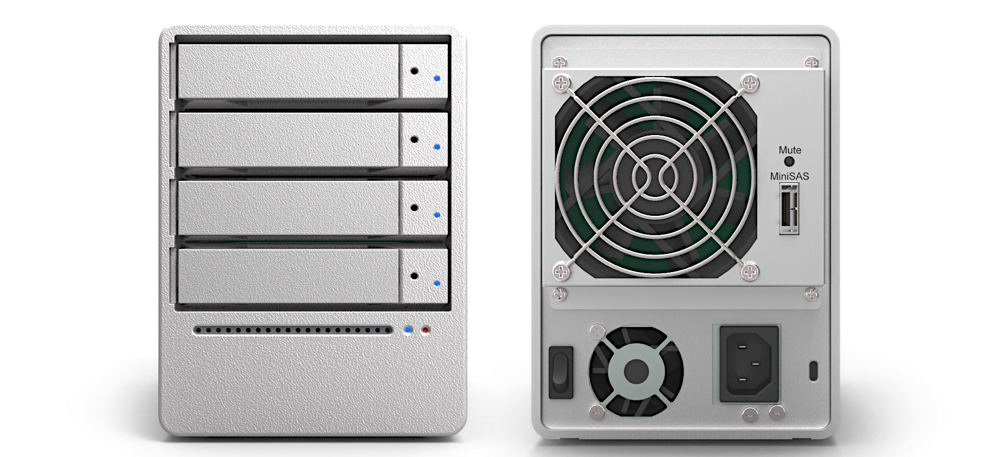

The ST4-U5 is a quadruple drive storage enclosure system that supports the latest 3.5" and 2.5" SATA and SAS hard drives to deliver high-capacity data storage solutions. Featuring flawless structural design, optimized internal configuration, and a durable aluminum casing to protect your internal drives, the ST4-U5 is perfect for creative and highly mobile professionals.

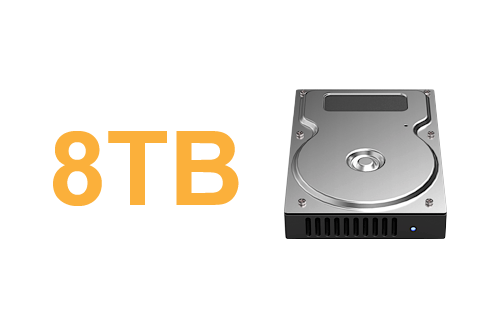

Expandable up to 32TB for your content creation needs.

The ST4 Series supports up to 8TB capacity SAS/SATA hard drives and when used with RAID card, you can expand to a maximum of 32TB in a RAID 0 configuration and a maximum of 18TB in a RAID 5 configuration for extra data protection.

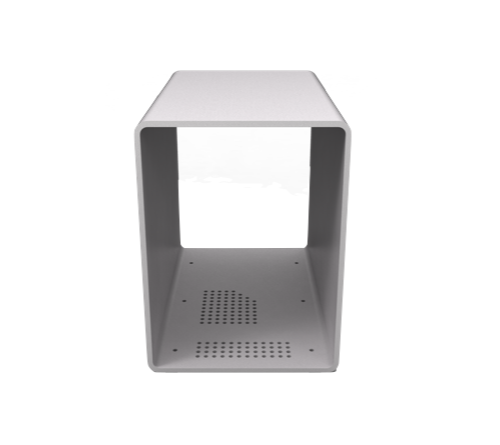

Tough and durable shielding body

The ST4 series beats any compact four drive systems with its seamless, 3.5mm thick full aluminum built body that�s robust to withstand the most demanding of use. With aluminum body, the system dissipates heat faster for a greater stability and performance that also extends the lives of the drives.

Compact to suit any desktop environment

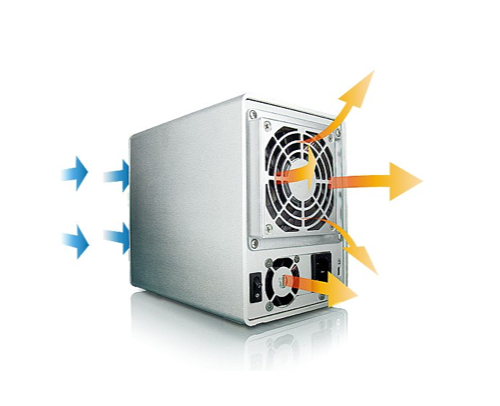

Although the ST4 Series holds up to four 3.5 inch drives and includes a 200 watt power supply, the overall size (approx. 6.5 inches tall x 5 inches wide) of the enclosure is compact and will not take up much room of your desktop space. Moreover, the system is equipped with a large quiet fan for continuous drawing away heat from the inside of the system for you drive to run comfortably.

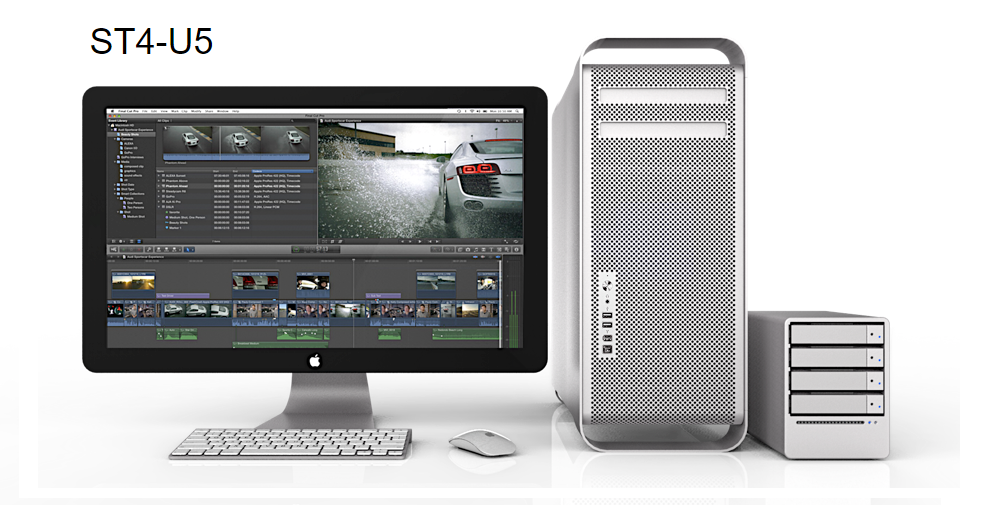

High-Speed, External RAID for Video Editing Applications.

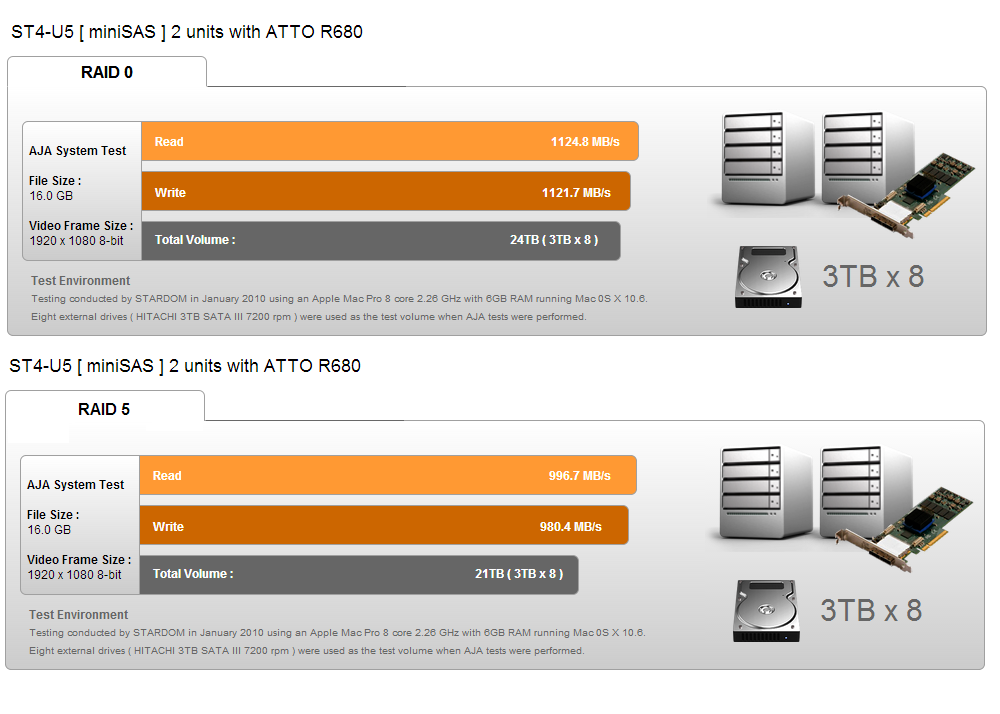

When used with the ATTO R680 PCIe x8 RAID controller two ST4-U5 with eight 7200 RPM, SATA III drives in RAID 5 protected mode achieves close to 1000MB/sec performance and supports two simultaneous streams of uncompressed 10-bit HD or a single 2K DPX sequence.

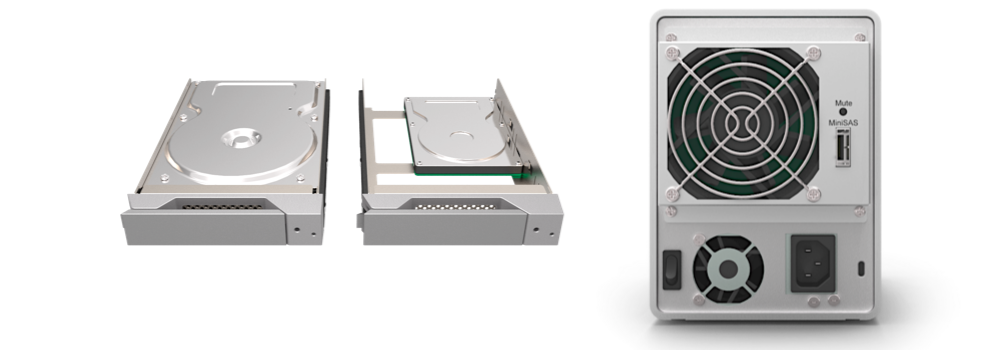

Hot Swaptable Supported, up to 4 Drives per ST4-U5  via Single Cable

A single mini-SAS cable provides four channels of 6G data transfer. When combined with the ST4-U5, users can allot 6G of bandwidth each for four separately installed drives, enabling each drive to reach its maximum read and write speeds�even SSDs! Get ready to experience higher transfer rates and increased productivity like never before!
