Part Number: SV231HDMIUA
Category
Connectivity Devices
 KVM Switches & Components
  STARTECH
Buy Price GST Ex Buy Price GST Inc
$386.36 $425.00
Stock GST Rate
21 10%
Description
Startech 2 Port USB HDMI KVM Switch with Audio and USB 2.0 Hub

Detailed Description

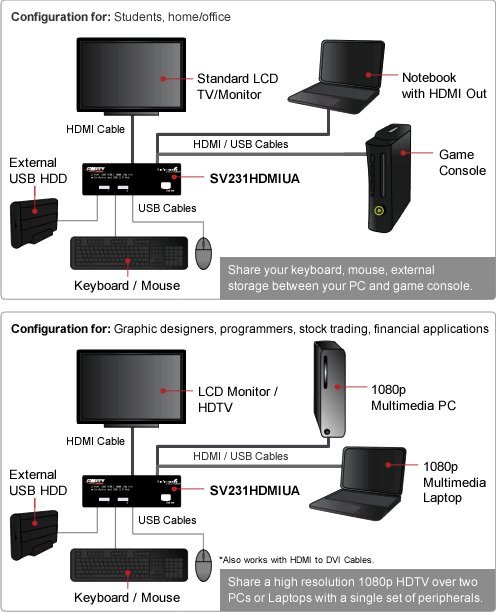

The SV231HDMIUA 2-port USB HDMI� KVM Switch lets you control two USB-enabled multimedia computers or devices with HDMI video interfaces, using a single peripheral set/console (USB keyboard, mouse, monitor, speakers and microphone).

A highly versatile KVM solution, the USB HDMI KVM Switch features an integrated 2-port USB 2.0 hub that lets selected computers access shared high speed USB devices, eliminating the cost of duplicate USB peripheral purchases.

Ensuring high quality video capability, the HDMI KVM switch supports HD resolutions of up to 1920 x 1200. Offering genuine digital signal transmission over the cable, this switch can be used to share one HD panel between multiple HDMI sources such as Blu-Ray players, Video Game consoles and HD media centers.

The switch also supports audio and microphone switching functions and allows you to select connected computers, USB device hub ports and audio/mic channels either simultaneously or independently using either front-panel push-buttons or keyboard hotkeys.



Connector(s)
Console Interface(s) 3.5 mm Mini-Jack (3 Position) Female
HDMI (19 pin) Female
USB Type-A (4 pin) USB 2.0 Female
Host Connectors 3.5 mm Mini-Jack (3 Position) Female
HDMI (19 pin) Female
USB B (4 pin) Female
Environmental
Humidity 0~80% RH
Operating Temperature 0�C to 40�C (32�F to 104�F)
Storage Temperature -20�C to 60�C (-4�F to 140�F)
Hardware
Audio Yes
Cables Included No
Daisy-Chain No
KVM Ports 2
Number of Monitors Supported 1
PC Interface USB
PC Video Type HDMI
Rack-Mountable No
Indicators
LED Indicators Online/Active (Green - Connected PC is online, Red - PC is selected)
Packaging Information
Shipping (Package) Weight 1.1 kg [2.5 lb]
Performance
Hot-Key Selection Yes
IP Control No
Maximum Digital Resolutions 1920 x 1200
Maximum Number of Users 1
On-Screen Display No
Port Selection Support Push Button and Hotkeys
Wide Screen Supported Yes
Physical Characteristics
Color Black
Enclosure Type Steel
Product Depth 70 mm [2.8 in]
Product Height 40 mm [1.6 in]
Product Weight 800 g [28.2 oz]
Product Width 124.8 mm [4.9 in]
Power
Center Tip Polarity Positive
Input Current 0.8A
Input Voltage 110V-240V AC
Output Current 1.5A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 18
Power Source AC Adapter Included
Software
OS Compatibility OS independent; No software or drivers required
What's in the Box
Included in Package 2 Port HDMI KVM
Package of Rubber feet
Power Adapter
User Manual

Warranty Details
Warranty Period : 3 Years
* Stock amount is quantity held by Award One Technology and its suppliers
