Part Number: TM-D5-300
Category
Components
 Device Enclosures
  NOONTEC
Buy Price GST Ex Buy Price GST Inc
$386.36 $425.00
Stock GST Rate
Call 10%
Description
Noontec TerraMaster D5-300 USB3.0 Type C (5Gbps) SUPERSPEED 5 Bay RAID Enclosure (Diskless)

- Supports 5 SATA hard drives
- Up to 40TB storage capacity
- Support to RAID0 and RAID5
- USB Type C interface (USB3.0, 5Gbps, SUPERSPEED)

Detailed Description

TerraMaster D5-300 USB3.0 Type C (5Gbps) SUPERSPEED 5bay RAID Enclosure (Diskless)






Details :

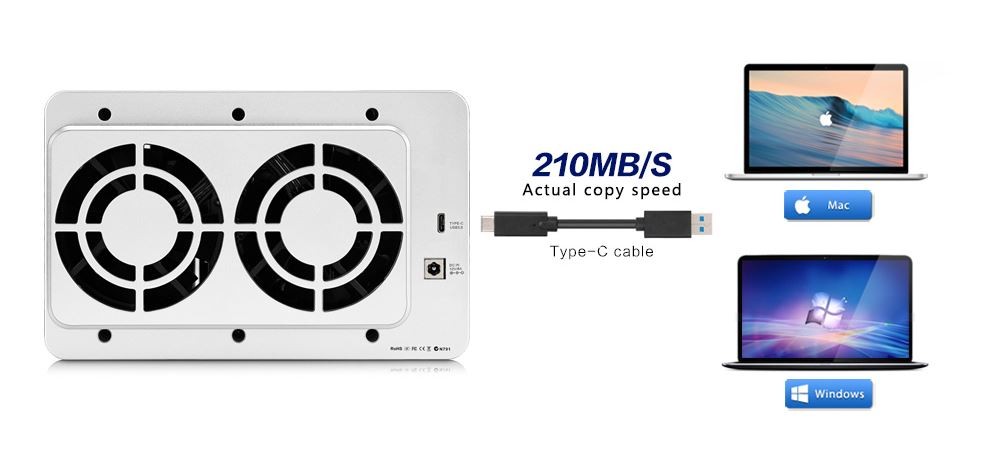

USB Type-C interface

Noontec TerraMaster D5-300 equipped with brand new USB type-C high-speed interface and compatible with Mac and Windows computers.

Real super speed with USB3.0 Transport Protocol!

Noontec TerraMaster D5-300 adopts USB3.0 5Gbps) SUPERSPEED protocol. In RAID 0, with desktop SSHD hard drives, the speed is up to 210MB/s (Read, max), and 190MB/s (Write, max).

Up to 40TB storage capacity

Noontec TerraMaster D5-300 can support five (5) SATA hard drives, is compatible with 8TB 3.5 inch SATA hard drive, and has a total storage capacity up to 40TB. (Note: users need to purchase their own hard drives. These are not included.)

Compatible with various hard drives

Noontec TerraMaster D5-300 is compatible with various hard drives, such as 3.5 inch SATA hard drives (including WD Green hard drives, WD Red hard drives, WD Purple hard drives, and Enterprise hard drives), 2.5" SATA hard drives, and 2.5" SATA SSD.

Support multiple RAID

Noontec TerraMaster D5-300 Support RAID0 and RAID5,do not support JBOD,SingleDisk,RAID1 and RAID10.

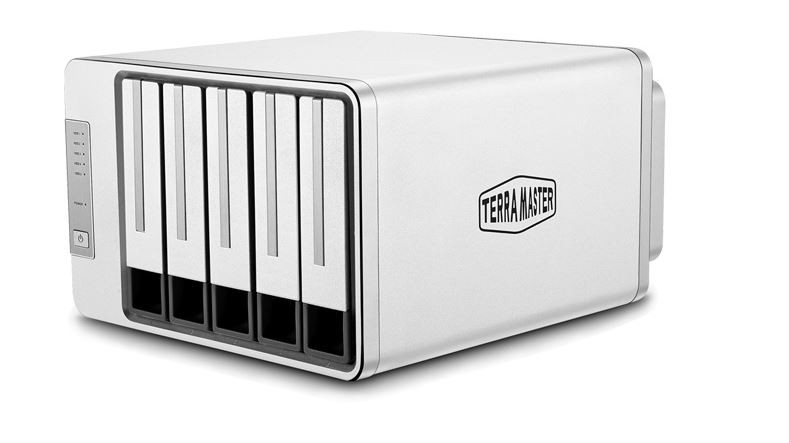

Aluminium Enclosure

Noontec TerraMaster D5-300 adopts aluminium enclosure and low-noise fan, which is firm and reliable, of good heat dissipation, and low noise.

Various applications

Noontec TerraMaster D5-300 is usable for various data application including video editing, photo backup, research and development, technical document preservation, file backup, music library, financial records, video surveillance, and corporate data storage.


Features :

  • Supports 5 SATA hard drives
  • Up to 40TB storage capacity
  • Support to RAID0 and RAID5
  • USB Type C interface (USB3.0, 5Gbps, SUPERSPEED)



Specifications :



Hardware Specifications

Storage

  • Drive Bay(s): 5
  • Compatible Drive Type: 2x 3.5" or 2.5" SATA 6Gb/s, SATA 3Gb/s Hard disk or SSD
  • supports hard disk group mode: Support RAID0 and RAID5,do not support JBOD,SingleDisk,RAID1 and RAID10
  • Maximum Internal Raw Capacity: 40 TB (8 TB HDD * 5) (Capacity may vary by RAID types)

External Ports

  • Data transmission interface: USB type-C x 1
  • Data transmission cable: USB Type-A - USB Type-C;Length:1M

File System

  • Internal Drives: FAT 32/16,NTFS
  • Read/write speed(max): Read:210MB/s,Write:190MB/s (2 SSHD RAID0 mode)

Supported OS

  • Supported OS: Windows OS, Mac OS

Appearance

  • Size (Height X Width X Depth): 227 x 225 x 136 mm
  • Housing material: aluminum
  • Weight: net weight: 2.16 Kg

Power

  • AC Input Power Voltage: 100V to 240V AC
  • Power Frequency: 50/60 HZ, Single Phase
  • Power Consumption: 45.6W(Access)

Environment Temperature

  • Operating Temperature: 5�C to 35�C (40�F to 95�F)
  • Storage Temperature: -10�C to 70�C (15�F to 155�F)
  • Certification: CCC,CE,FCC,UL
  • Warranty: 2 Years
  • Notes: Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

Environment & Packaging

  • Environment: RoHS Compliant
  • Packaging Content
    • Main Unit X 1
    • Welcome Note X 1
    • Accessory Pack X 1
    • AC Power Adapter X 1
    • Adapter Cable * 1
    • USB Type-Cable * 1




Warranty Details
Warranty Period : 1 Year
