Part Number: UGT-PC370A
Category
USB
 USB Controllers
  VANTEC
Buy Price GST Ex Buy Price GST Inc
$50.00 $55.00
Stock GST Rate
Call 10%
Description

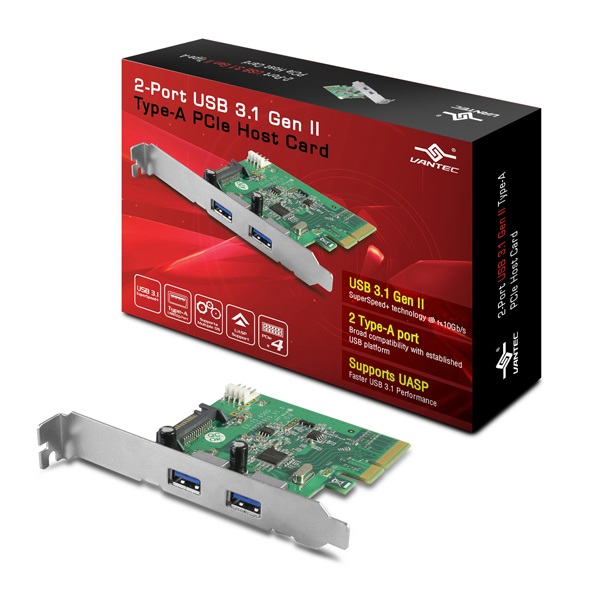

Vantec 2-Port USB 3.1 Gen II Type-A PCIe Host Card

Features :

- SuperSpeed Plus USB 3.1 Gen II up to 10 Gbps Connection
- Support PCI-Express 3.0 specifications for increase speed thru the PCIe Bus
- Support UASP Devices on both ports for extra boost in speed when using latest OS.
- Two External USB 3.1 Type-A Ports
- Supports Hot-Swap: Plug & Play Devices Without Rebooting
- USB 3.1 Type-A Port for Compatibility with USB 3.0, 2.0, 1.1 USB Technology
Detailed Description

2-Port USB 3.1 Gen II Type-A PCIe Host Card



The Vantec 2-Port USB 3.1 Gen II Type-A PCIe Host Card is design to offer the latest in USB 3.1 Technology. This Card provides clocking speed of up to 10Gbps, twice of USB 3.0 (5Gbps) and almost 20 times of USB 2.0(480Mbps). USB 3.1 SuperSpeed Plus enables you to access and transfer data extremely faster and simple with external storage devices. It is backward compatible to USB 3.0, USB 2.0 and USB 1.1, to ensuring compatibility with existing external USB devices. The ports are design to provide better power for bus powered devices



Features:


More Features:

  • SuperSpeed Plus USB 3.1 Gen II up to 10 Gbps connection to give you the Maximum Speed
  • Full height PCI_E Gen2 x 4 add on card with 2 port USB 3.1 interface
  • Chipset ASMedia ASM1142, PCI Express to USB 3.1 host controller
  • Compliant to Universal Serial Bus 3.1 specification Revision 1.0
  • Backward compatible to USB 3.0 and 2.0
  • Compliant with extensible Host Controller interface specification Revision 1.1
  • Support Control, Bulk, Stream, Interrupt, Isochronous transfer type
  • PCI Express Gen2 x 2 with clocking speed up to 10Gbps
  • Supports PCI Express� Card Electromechanical Specification Release 2.0
  • Supports PCI Bus Power Management Interface Specification Release 1.2
  • Support driver on Windows 7 and native drivers for Windows 8/8.1
  • Support Linux kernel 3.13.0 & above

    • Specifications:

    Model: UGT-PC370A
    Device Support: USB 3.1 Type A (backward compatible with USB 3.0/2.0)
    Ports: 2, USB 3.1 Type A ports
    Bus Technology: PCI-Express x4
    Power connector: SATA power or 4-pin Berg power connector
    Dimension: 120 x 82 x 19 mm

    System Requirements:

  • PCI-Express x4, x8 or x16 slots
  • Microsoft Windows 7, 8, 8.1, 10, Server 2012R2 64bit and Linux Ubuntu 12.10 Kernel 3.13.0 or later
  • System with 4GB RAM or more
  • Optical Drive for Driver installation or www.vantecusa .com to download
  • USB 3.1 devices preferred to get maximum speed

    • Package Contents:

  • 2-Port USB 3.1 Gen II Type-A PCIe Host Card
  • Driver CD
  • 4-pin Berg to 4 pin Molex power cable
  • User Manual / Quick Installation Guide
    • * Stock amount is quantity held by Award One Technology and its suppliers
